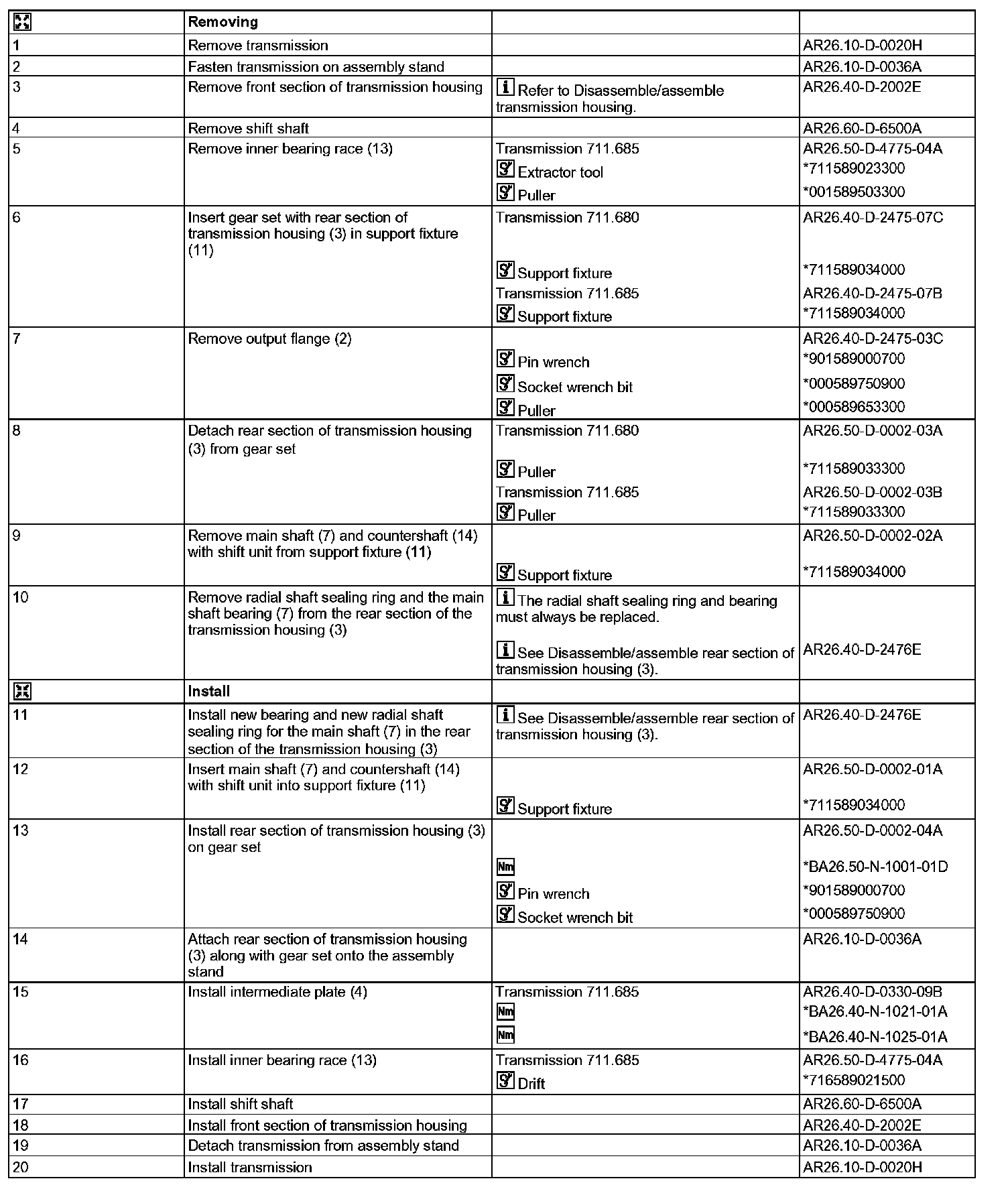

AR26.50-D-0002B Remove/Install Main Shaft and Countershaft With Shift Unit
AR26.50-D-0002B Remove/Install Main Shaft and Countershaft With Shift Unit
- TRANSMISSION 711.680/685

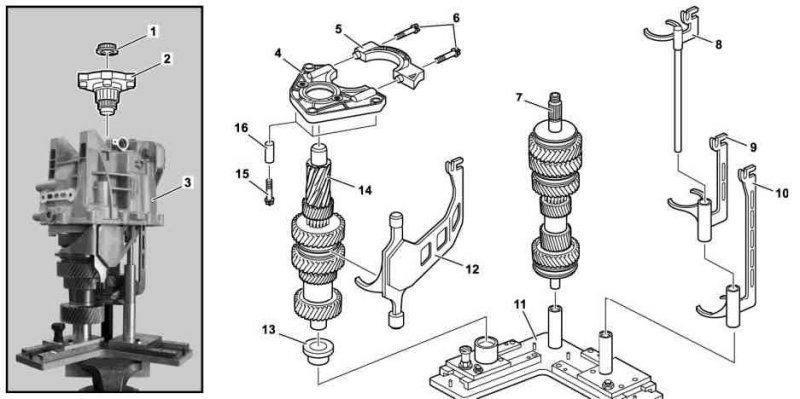

Transmission 711.685 shown
1 Nut
2 Output flange
3 Rear section of transmission housing
4 Intermediate plate (transmission 711.685)
5 Bearing cap (transmission 711.685)
6 Screw (transmission 711.685)
7 Main shaft
8 Shift fork
9 Shift fork
10 Shift fork
11 Support fixture
12 Shift fork
13 Inner bearing race (transmission 711.685)
14 Countershaft
15 Screw (transmission 711.685)
16 Fitting sleeve (transmission 711.685)
711 589 02 33 00
Extraction tool
001 589 50 33 00
Puller
716 589 02 15 00
Drift
711 589 03 33 00
Puller
711 589 03 40 00
Support fixture
901 589 00 07 00
Pin wrench
000 589 65 33 00
Puller
000 589 75 09 00
Wrench socket
