AR26.50-D-0002-04A Fit Rear Section of Transmission Housing on Gear Set

AR26.50-D-0002-04A Fit Rear Section of Transmission Housing on Gear Set
- TRANSMISSION 711.680/685












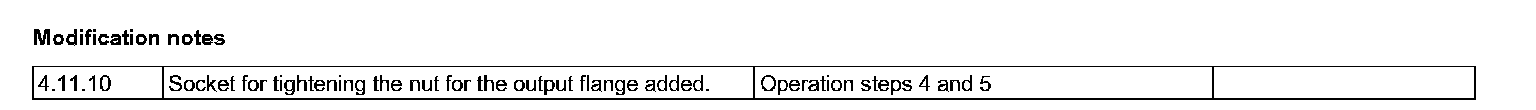

901 589 00 07 00
Pin wrench





000 589 75 09 00
Wrench socket





Shown on transmission 711.685

1 Attach rear section of transmission housing (3) to gear set
2 Check positions of the shift forks.

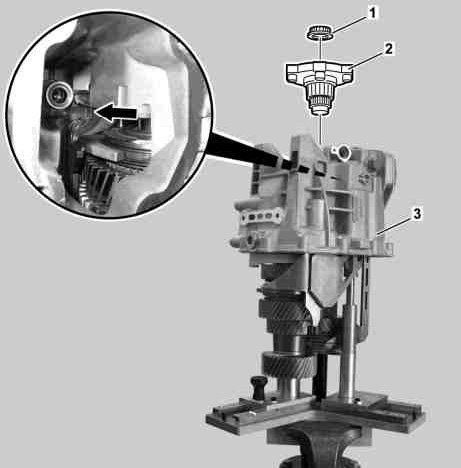

The notches (arrow) in the shift forks must be level so that the shift shaft can be installed later.

3 Attach output flange (2) onto main shaft.

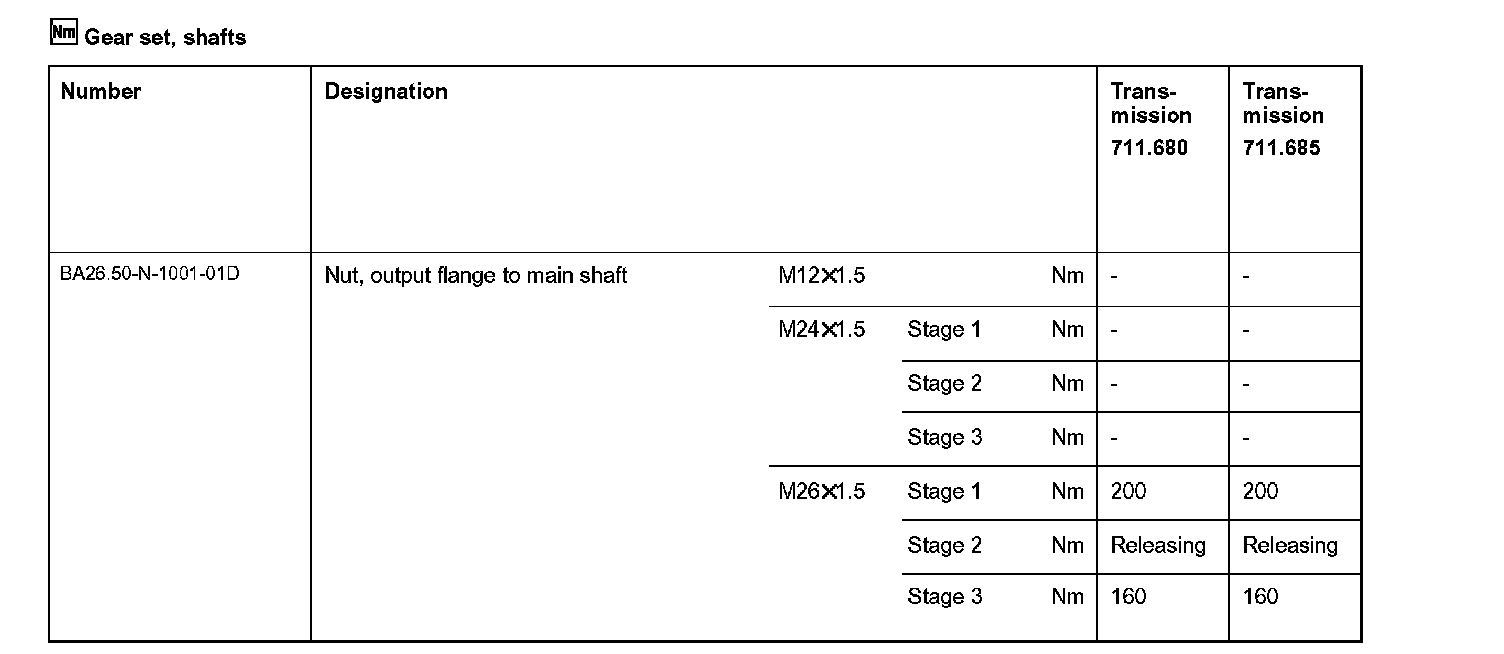

4 Counterhold output flange (2) using pin wrench and tighten with the previously removed nut (1) using the socket (1st stage),.

The rear section of the transmission housing (3) is thereby pressed onto the gear set. Check the positions of the shift forks during and after tightening.

5 Remove nut (1) again and tighten new nut (1) using socket (3rd stage), counterhold output flange (2) using pin wrench.
