AR26.50-D-0002-03B Remove Rear Section of Transmission Housing From Gear Set

AR26.50-D-0002-03B Remove Rear Section of Transmission Housing From Gear Set
- TRANSMISSION 711.685









711 589 03 33 00
Puller

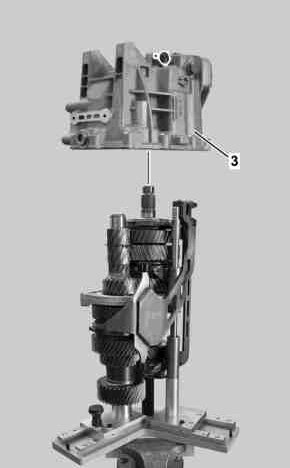

1 Use the puller to detach the transmission housing rear section (3) from the gear set.

To avoid damage to the sealing surface of the transmission housing rear section (3), attach jaws of puller with wood or plastic pads.
