AR26.45-D-0016-04A Remove/Install Gearshift Lever and Shift Rod of the Shift Lock

AR26.45-D-0016-04A Remove/Install Gearshift Lever and Shift Rod of the Shift Lock
- TRANSMISSION 711.651
- with CODE (N05) Power take-off countershaft (2c) without flange
- TRANSMISSION 711.651
- with CODE (N07) Power take-off countershaft (2b) with flange

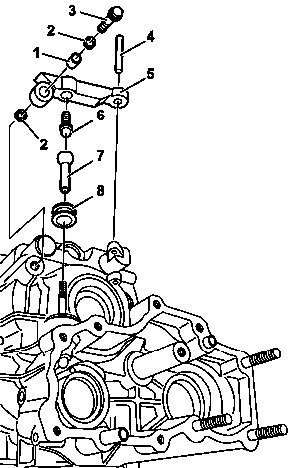

1 Remove cylindrical pin (4).
2 Remove the gearshift lever (5),.

Installation: Check boots (2); replace if necessary.

3 Remove bearing (1).

Installation: Replace bearing (1).

4 Remove ball head (6) and shift rod (7).
5 Remove boot (8).

Installation: Check boot (8) and replace if necessary.

6 Install in the reverse order.
