AR26.40-D-2475-07C Insert Gear Set With Rear Section of Transmission Housing Into Support Fixture

AR26.40-D-2475-07C Insert Gear Set With Rear Section of Transmission Housing Into Support Fixture
- TRANSMISSION 711.680






711 589 03 40 00
Support fixture





1 Check sleeves (19, 20) of support fixture (11), change if necessary.

Different sleeves (19, 20) need to be used depending on the transmission model. The relevant transmission drawings are specified on the sleeves.

2 Clamp support fixture (11) in vise.
3 Slide support slides (17, 18) inward as far as the end stop and lock fastening device (21).

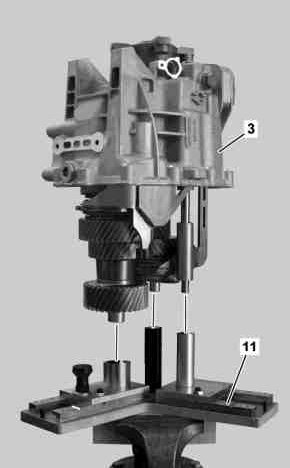

4 Insert gear set with rear section of transmission housing (3) in support fixture (11).
