AR26.10-D-0036A Fasten Transmission on Assembly Stand




AR26.10-D-0036A Fasten Transmission on Assembly Stand




- TRANSMISSION 711.685 in MODEL 906

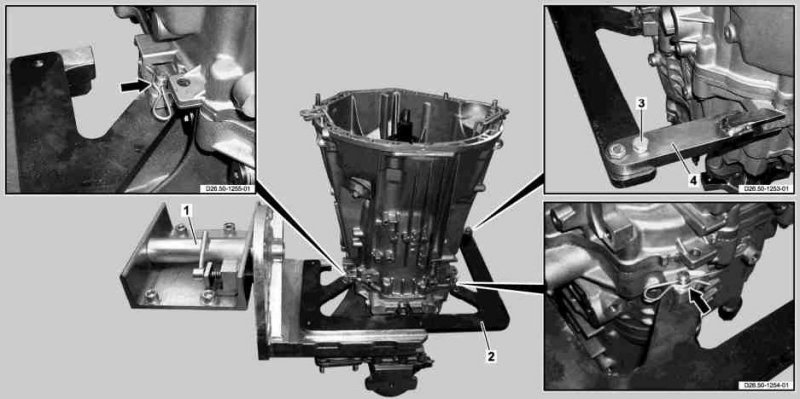

1 Assembly stand
2 Support
3 Screw
4 Locking claw








116 589 06 59 00
Assembly stand





711 589 00 40 00
Support





711 589 02 40 00
Support
