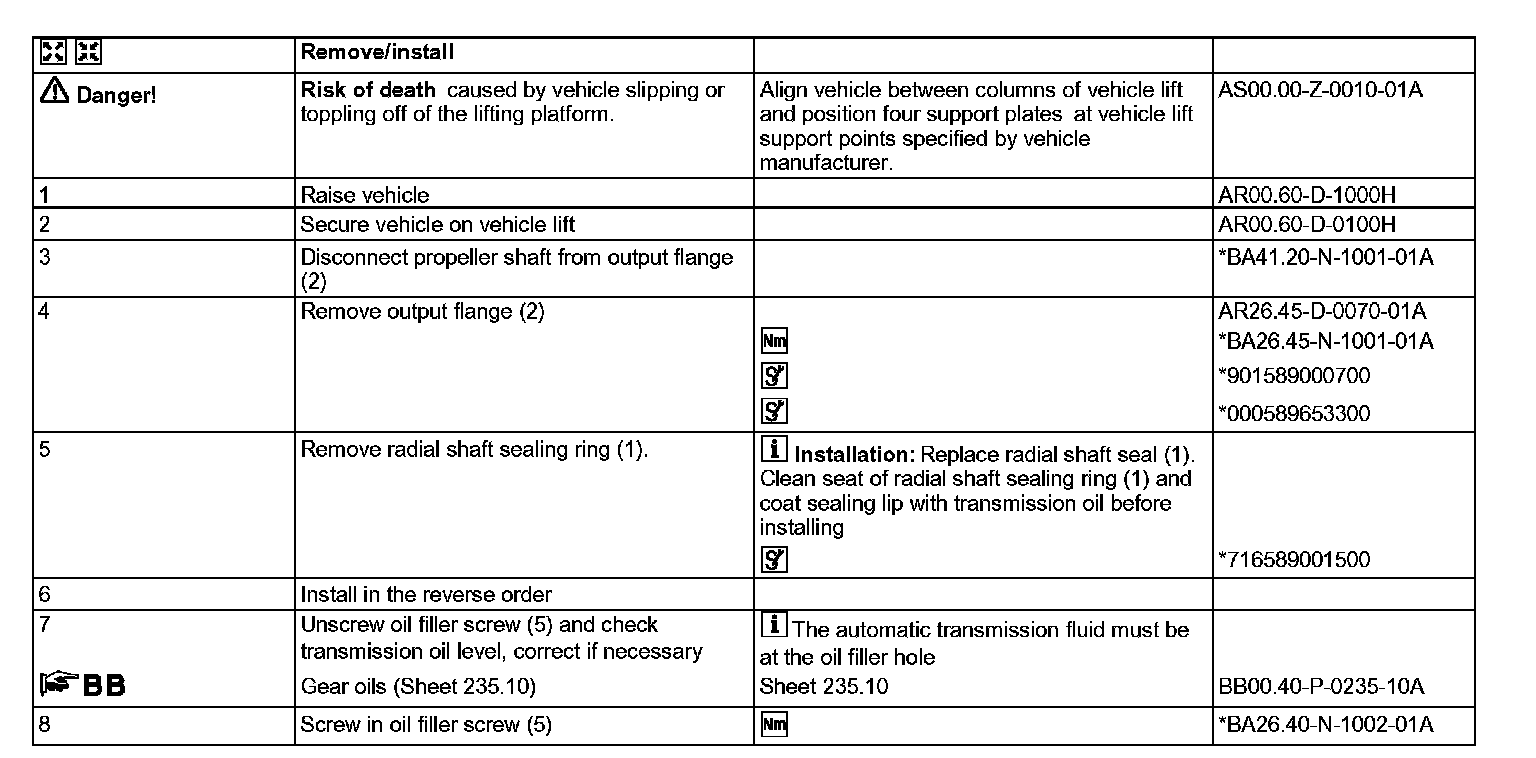

AR26.45-D-0011B Remove/Install Radial Shaft Seal For Output Flange

AR26.45-D-0011B Remove/Install Radial Shaft Seal For Output Flange
- TRANSMISSION 711.651 in MODEL 906
- with CODE (N07) Power take-off countershaft (2b) with flange
- TRANSMISSION 711.660 in MODEL 906
- with CODE (N07) Power take-off countershaft (2b) with flange
- TRANSMISSION 711.680 in MODEL 906
- with CODE (N07) Power take-off countershaft (2b) with flange
- TRANSMISSION 711.685 in MODEL 906
- with CODE (N07) Power take-off countershaft (2b) with flange








Shown on transmission 711.680

1 Radial shaft seal
2 Output flange
3 Washer
4 Screw

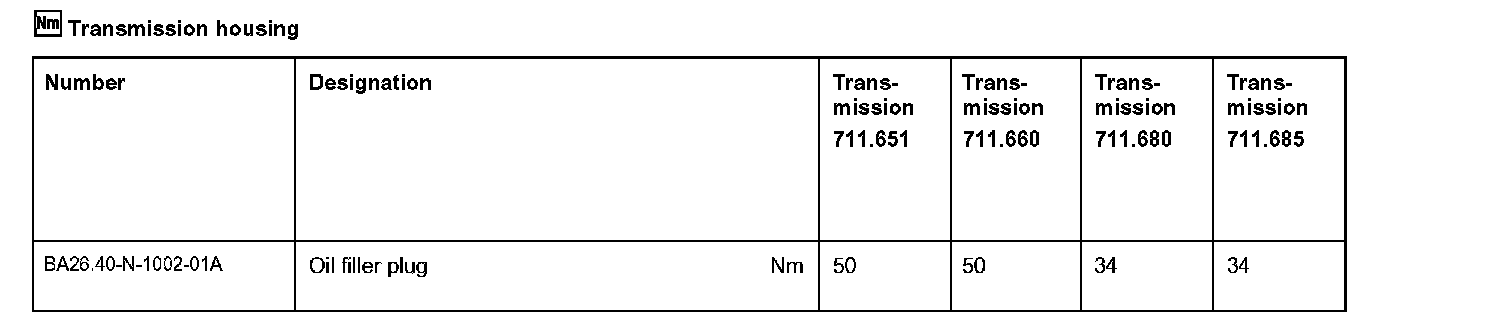

5 Oil filler plug

















901 589 00 07 00
Pin wrench





000 589 65 33 00
Puller





716 589 00 15 00
Drift
