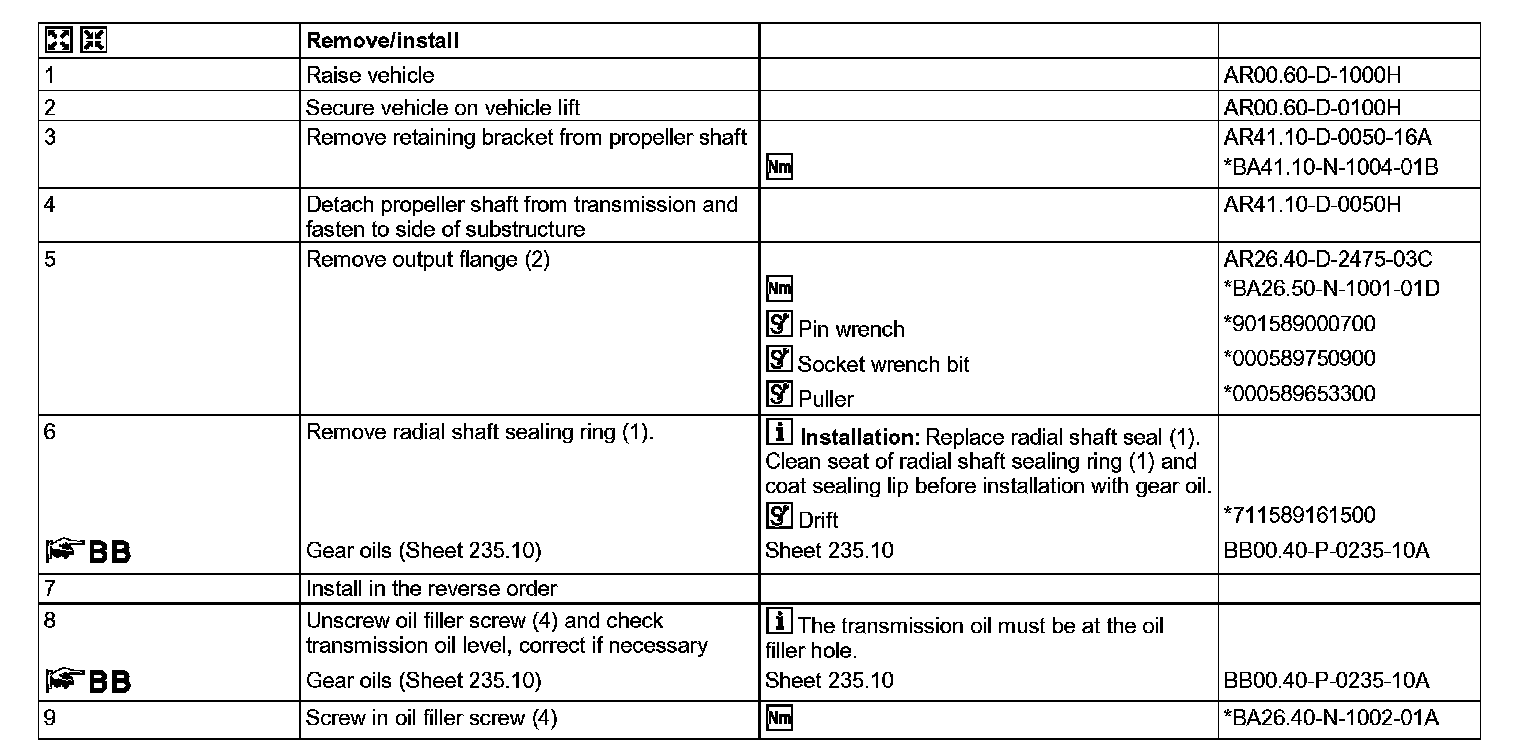

AR26.40-D-3840B Remove/Install Output Shaft Radial Shaft Sealing Ring

AR26.40-D-3840B Remove/Install Output Shaft Radial Shaft Sealing Ring
- TRANSMISSION 711.680 in MODEL 906
- TRANSMISSION 711.685 in MODEL 906








Shown on transmission 711.685

1 Radial shaft seal
2 Output flange

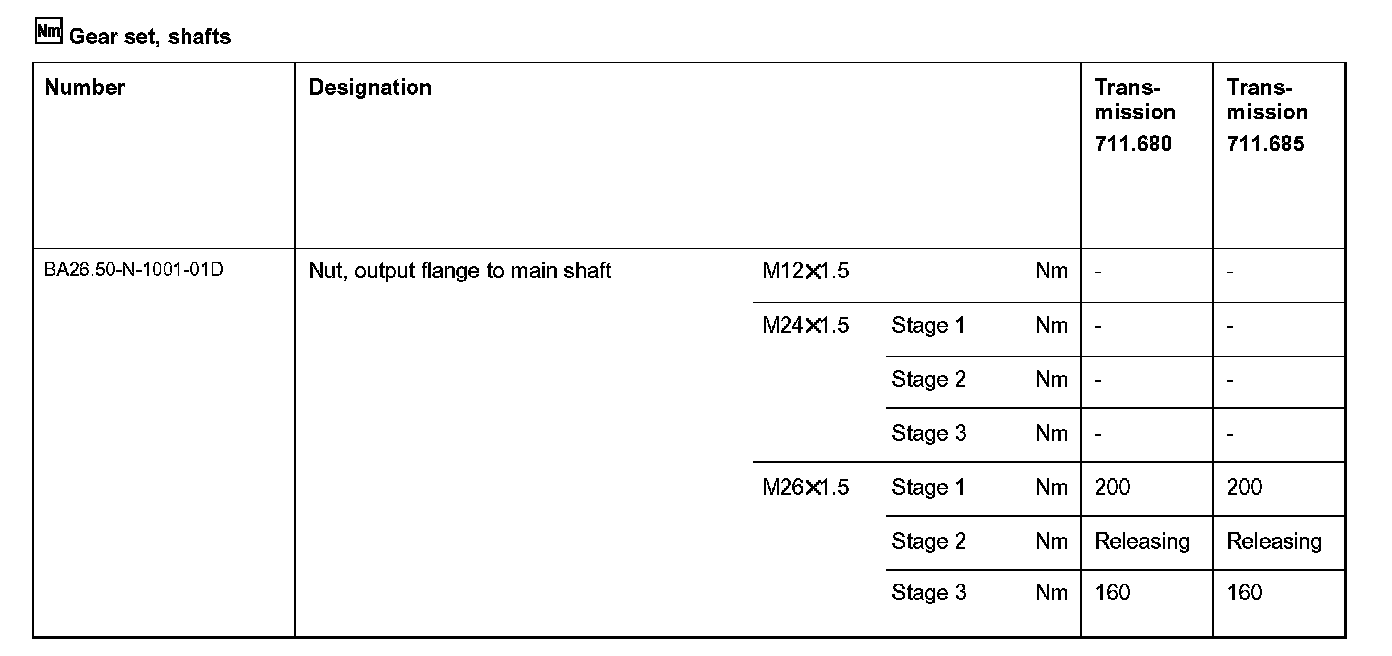

3 Nut

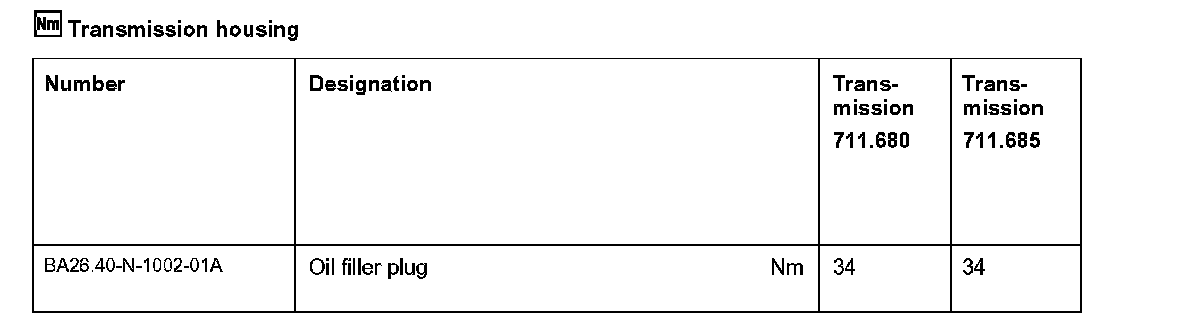

4 Oil filler plug




















000 589 65 33 00
Puller





000 589 75 09 00
Wrench socket





711 589 16 15 00
Drift





901 589 00 07 00
Pin wrench
