SM26.55-D-0001-05AK Connect Oil Pump As Indicated In the Wiring Diagram

SM26.55-D-0001-05AK Connect Oil Pump As Indicated in the Wiring Diagram
- TRANSMISSION 711.651 /660 in MODEL 906
- with CODE (GK4) preinstallation for transmission cooling









220 589 01 99 00
Cable harness repair kit

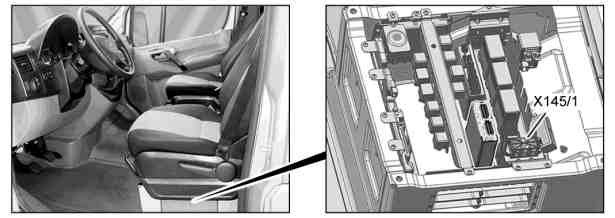

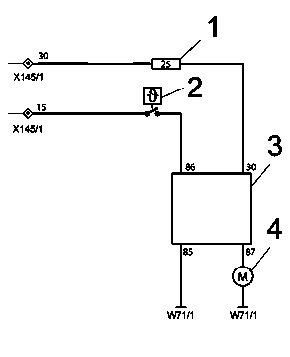

1 Connect oil pump (4) via additional relay (3) to X145/1 in driver seat box as per circuit diagram.

Line cross section 2.5 mm2

1 Additional fuse
2 Thermo-switch
3 Additional relay
4 Oil pump





X145/1 Separation point for body manufacturer

2 Guide electrical lines from the seat box through the rubber grommet downwards to the oil pump and thermo switch.

Fasten cable chafe-free using cable ties.





3 Connect plug to the oil pump.

Pin assignment of oil pump.





4 Switch on ignition
5 Bridge coupling on thermo switch and with the thumb on the oil pump check the suction direction.
6 Connect plug to thermo switch.

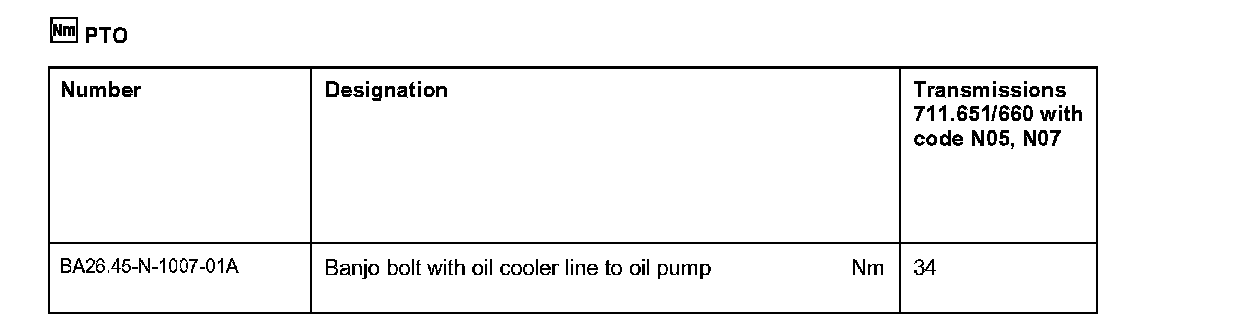

7 Attach suction line to the oil pump with banjo bolt and seal rings.
