Fluid Line / Hose: Service and Repair

SM26.55-D-0001-06AK Install Flexible Feed and Return Line
- TRANSMISSION 711.651 /660 in MODEL 906
- with CODE (GK4) preinstallation for transmission cooling








1 Attach feed line and return line to longitudinal member with clamps (4).





2 Mount flexible feed line (5) (length: 1650 mm ) on the feed line coming from the cooler.

Pay attention to the clearance of the line (no chafe marks).

Pay attention to movement clearance (engine load change).

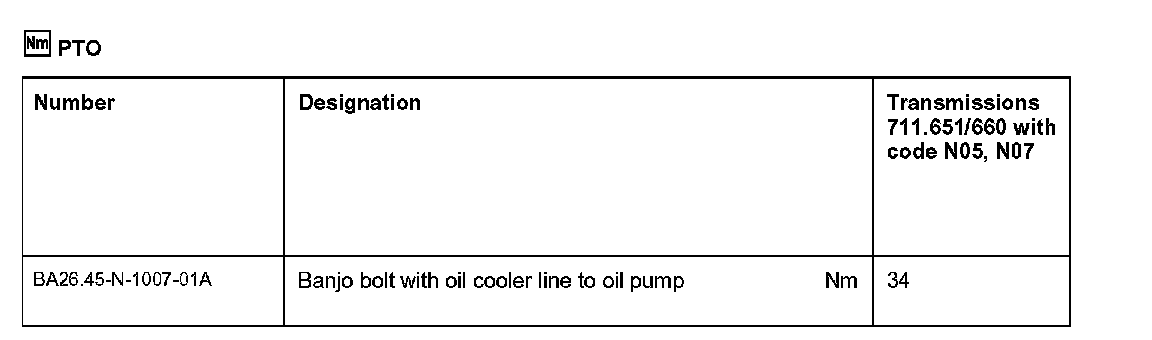

3 Screw flexible feed line (8) onto the oil pump.
4 Screw flexible suction line (6) (length: 1400 mm) onto the oil pump and route to transmission.
5 Detach battery cable from bracket and attach to battery carrier.





6 Connect return lines and attach to transmission with clamps (4).





7 Attach feed line and suction line to front axle carrier and battery carrier with clamps (4).
