GF26.19-D-4115H Neutral Position Switch, Component Description

GF26.19-D-4115H Neutral Position Switch, Component Description
- TRANSMISSION 711.6

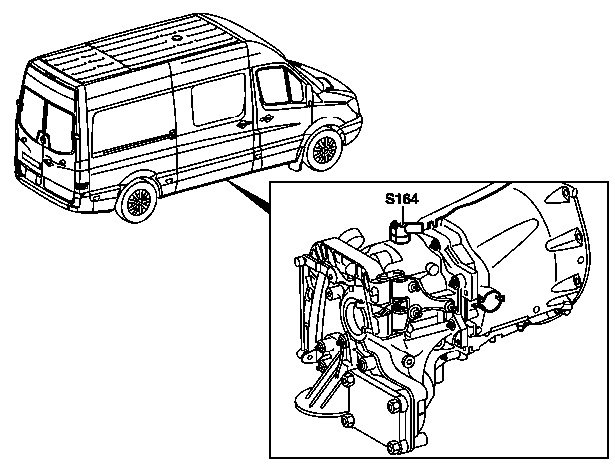

S164 Transmission neutral position switch

Location

The transmission neutral position switch is located on top of the rear housing part of the transmission.

Task

The transmission neutral position switch detects the neutral position of the transmission. It detects whether or not a gear is engaged. On vehicles with code (MJ6) Engine start/stop system, the transmission neutral position switch is read in via a discrete line by the CDI control unit (N3/20), with OM 642, or by the CDI control unit (N3/21), with OM 646, and placed as a message on the Controller Area Network bus class C (engine compartment) (CAN-C).

On vehicles except code (MJ6) Engine start/stop system, the transmission neutral position switch is read in via a discrete line by the ESP control unit (N30/4) and placed as a message on CAN-C.
