AR41.10-D-0101I Remove/Install Propeller Shaft Intermediate Bearing

AR41.10-D-0101I Remove/Install Propeller Shaft Intermediate Bearing

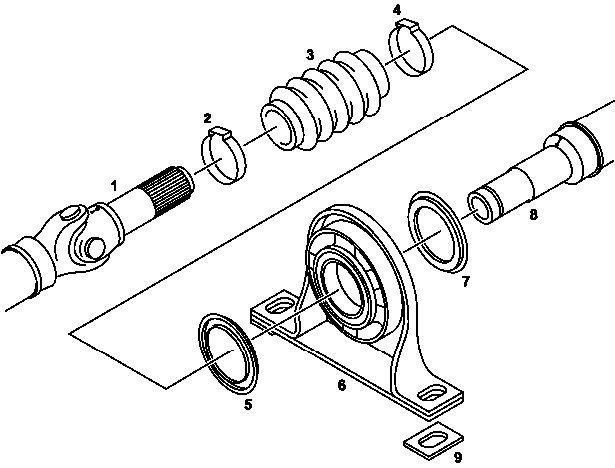

- Propeller shaft center support bearing (with protective caps) on sliding piece with 2- and 3-piece propeller shaft





1 Rear propeller shaft
2 Hose clamp
3 Rubber boot
4 Hose clamp
5 Protective cap
6 Propeller shaft intermediate bearing
7 Protective cap
8 Front propeller shaft
9 Shim (5 mm)








366 589 02 15 00
Drift





000 589 45 33 00
Puller





906 589 01 15 00
Drift
