AR41.10-D-0101H Remove/Install Propeller Shaft Intermediate Bearing

AR41.10-D-0101H Remove/Install Propeller Shaft Intermediate Bearing

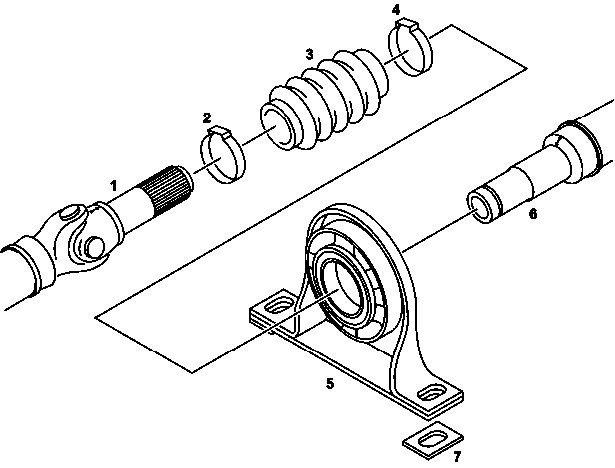

- Propeller shaft center support bearing (without protective caps) on sliding piece with 2- and 3-piece propeller shaft





1 Rear propeller shaft
2 Clamp
3 Rubber boot
4 Clamp
5 Propeller shaft center support bearing
6 Front propeller shaft
7 Shim (5 mm)








366 589 02 15 00
Drift





000 589 45 33 00
Puller





906 589 00 15 00
Drift
