Procedures

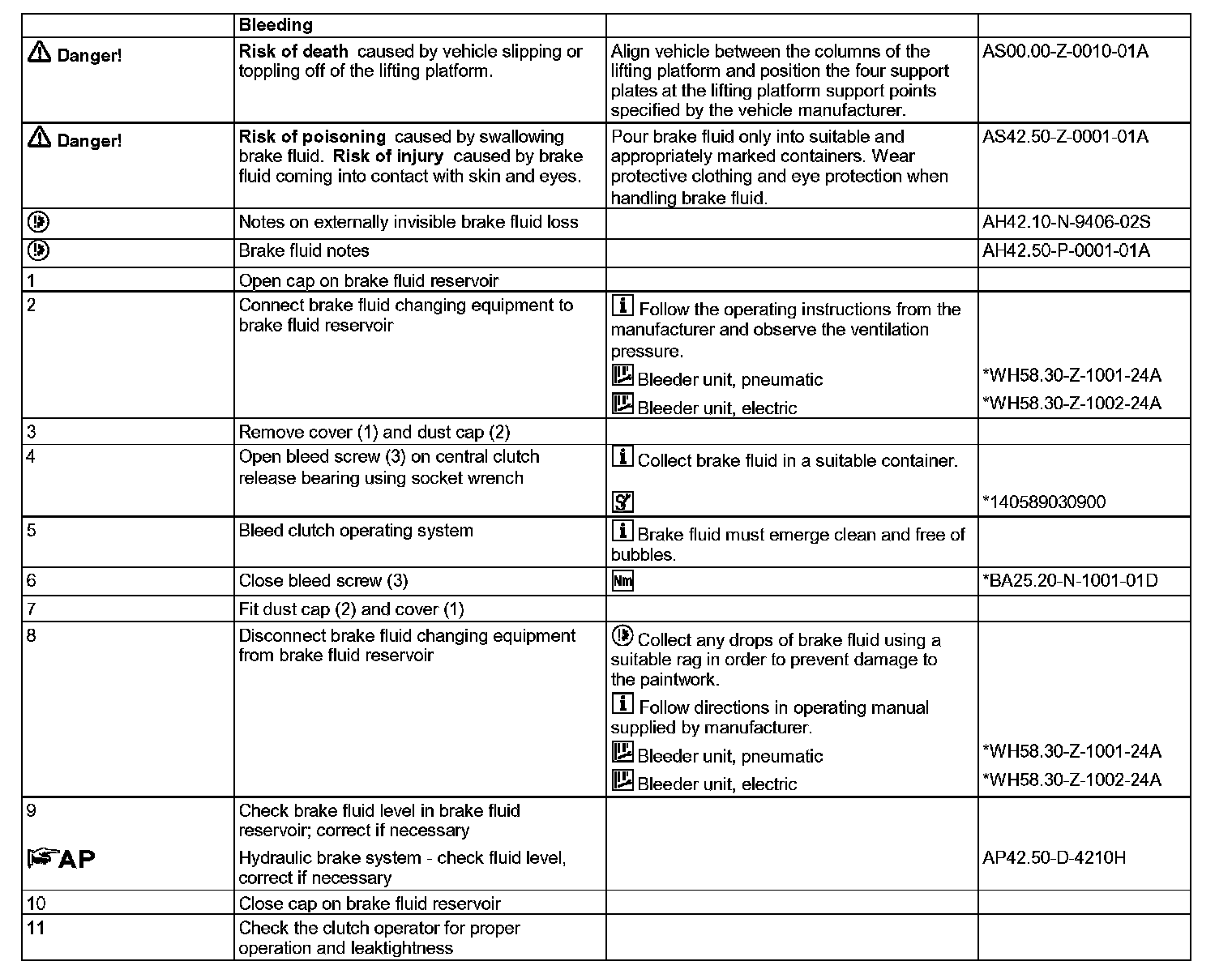

AR25.20-D-0070SD Bleed Clutch Operating System
- MODEL 906 with TRANSMISSION 711.6

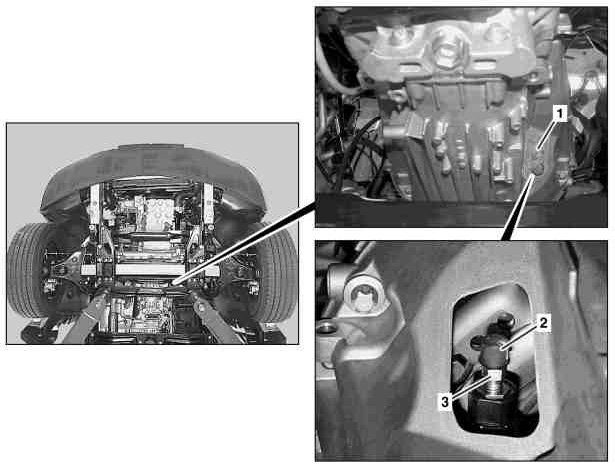

1 Cover
2 Dust cap
3 Bleed screw











140 589 03 09 00
Socket wrench
