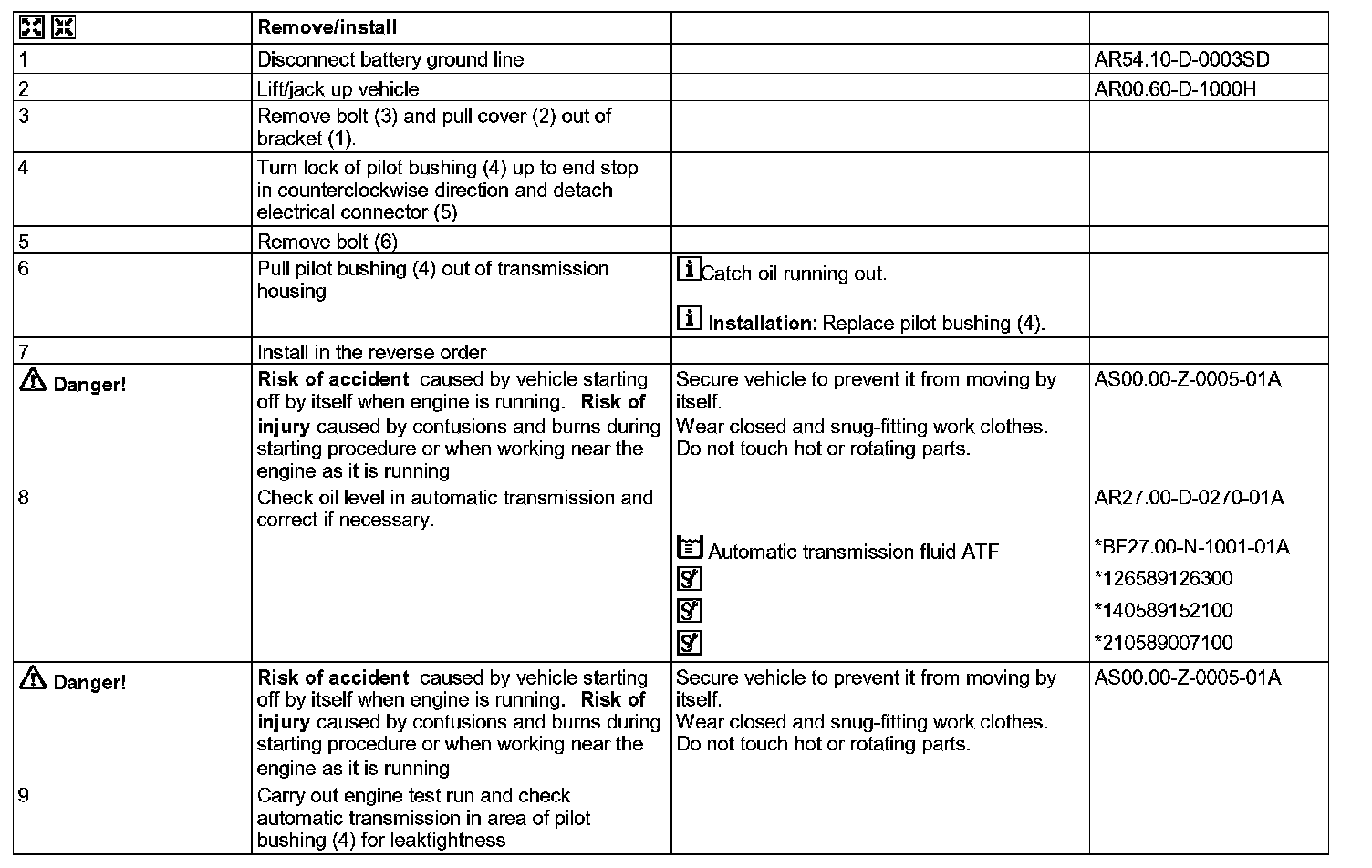

AR27.19-D-4980B Remove/Install Pilot Bushing of Electrohydraulic Controller Unit

AR27.19-D-4980B Remove/Install Pilot Bushing of Electrohydraulic Controller Unit
- TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.686 in MODEL 906.1 /2 /6 /7

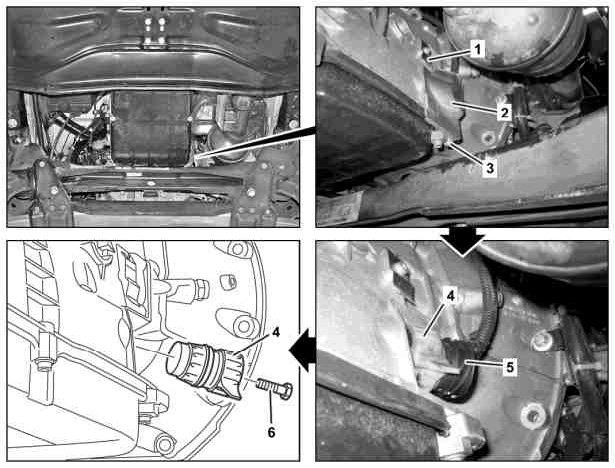

1 Bracket
2 Cover
3 Screw
4 Pilot bushing
5 Electrical connector
6 Screw











126 589 12 63 00
Funnel





140 589 15 21 00
Dipstick





210 589 00 71 00
Hand pump
