Removal and Replacement

AR27.10-D-0502B Remove/Install Automatic Transmission
- TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

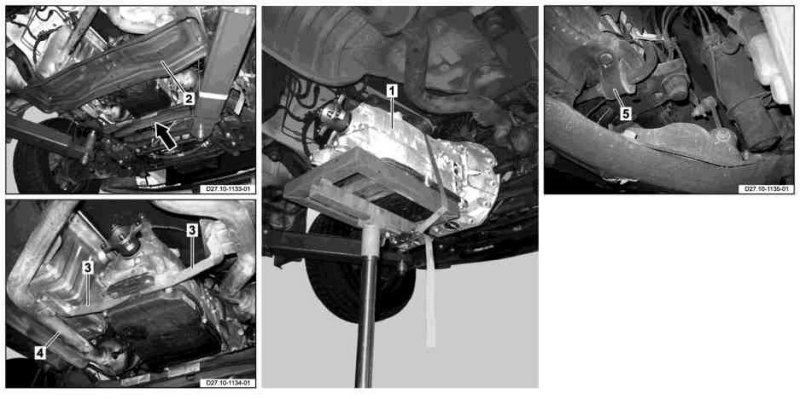

Shown on transmission 722.685

Without all-wheel drive

1 Transmission
2 Transmission crossmember
3 Exhaust bracket
4 Catalytic converter
5 Torsion bar bracket















































906 589 00 03 00
Ratchet box wrench





906 589 08 63 00
Drain plate





126 589 12 63 00
Funnel





140 589 15 21 00
Dipstick





210 589 00 71 00
Hand pump
