AR27.51-D-0830B Disassemble/Assemble K3 Clutch

AR27.51-D-0830B Disassemble/Assemble K3 Clutch


- TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

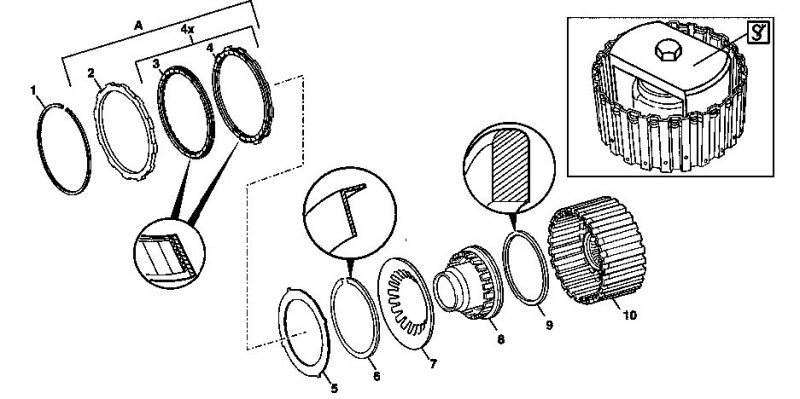

Shown on transmission 722.681

1 Circlip
2 Externally toothed disk (4.0 mm)
3 Internally toothed plate (a different number of internally toothed plates are fitted depending on the transmission version)
4 Externally toothed plate (a different number of externally toothed plates are fitted depending on the transmission version)
5 Disk spring
6 Circlip
7 Spring cup
8 Piston
9 Sealing ring
10 External plate carrier

A Multiple-disc pack K3
Assembly device











140 589 13 43 00
Assembly tool





208 589 00 21 00
Thrust device
