AR27.51-D-0830-01C Insert/Measure K3 Clutch Pack

AR27.51-D-0830-01C Insert/Measure K3 Clutch Pack
TRANSMISSION 722.683/684/685











208 589 00 21 00
Thrust device





Transmission 722.683





Transmissions 722.684/685

1 Put together externally toothed plates (2, 4) and internally toothed plates (3) in the sequence shown and insert individually

A different number of externally toothed plates (4) and internally toothed plates (3) are fitted depending on the transmission version.

Place new externally toothed plates and internally toothed plates in ATF oil 1 h before installation.

Design of multiple-disc clutch

1 Circlip
2 Externally toothed disk (4.0 mm)
3 Internally toothed plates
4 Externally toothed plates
5 Disk spring
10 External plate carrier

L Toothed plate play





2 Install circlip (1).

Both ends of the circlip (1) must seat in an internal indentation of the external plate carrier (arrows).





3 Mount pressure device on externally toothed plate (2).
4 Press clutch pack together as far as the end stop using pressure device and a lever press.

The marking ring (bottom arrow) must still be visible.

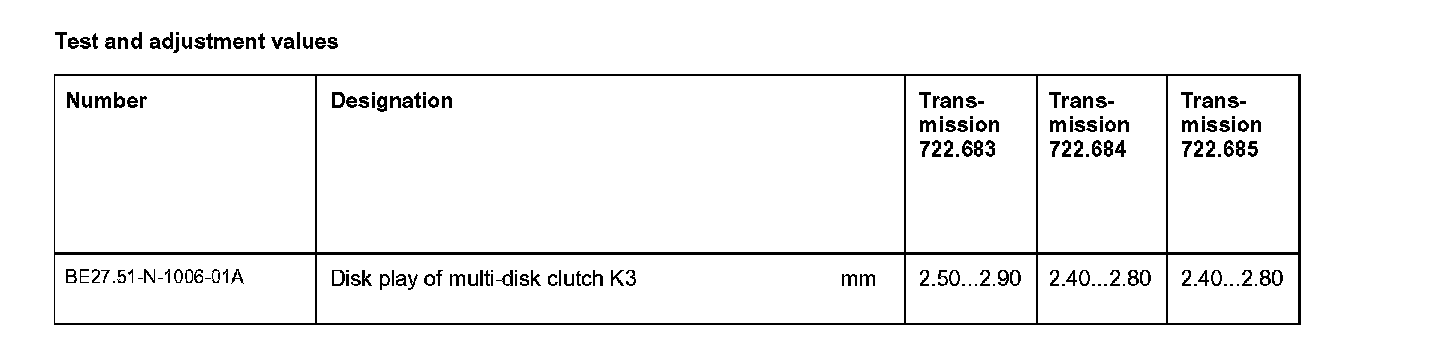

5 Using a feeler gauge, check the toothed plate play (L) at three points between the circlip (1) and externally toothed plate (2).

To measure the toothed plate play (L) the circlip (1) must abut with the upper contact surface of the groove.

If necessary, adjust the toothed plate play (L) by installing a circlip (1) of corresponding thickness.
