AR27.51-D-0825A Disassemble/Assemble Drive Shaft With K2 Clutch and Front Gear Set

AR27.51-D-0825A Disassemble/Assemble Drive Shaft With K2 Clutch and Front Gear Set


- TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
- TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

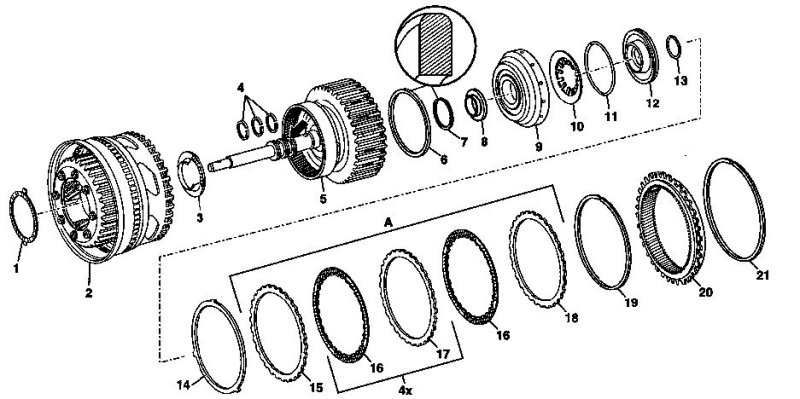

Shown on transmission 722.681

1 Needle roller bearing
2 Front gear set
3 Needle roller bearing
4 Sealing rings
5 Input shaft (with external plate carrier K2)
6 Inner piston seal ring
7 Outer piston seal ring
8 Thrust plate
9 Piston
10 Disk spring
11 Seal ring (spring cup)
12 Spring cup
13 Circlip
14 Disk spring
15 Externally toothed plate
16 Internally toothed plate (a different number of internally toothed plates are fitted depending on the transmission version)
17 Externally toothed disk (2.8 mm) (a different number of externally toothed plates are fitted depending on the transmission version)
18 Externally toothed plate
19 Circlip
20 Ring gear
21 Circlip

A Disk pack K2





13 Circlip











140 589 13 43 00
Assembly tool





208 589 00 21 00
Thrust device
