AR27.51-D-0820-02B Insert/Measure K2 Clutch Pack

AR27.51-D-0820-02B Insert/Measure K2 Clutch Pack
TRANSMISSION 722.683/684/685











208 589 00 21 00
Thrust device





Transmission 722.683





Transmission 722.684





Transmission 722.685

1 Put together externally toothed plates (15, 17, 18) and internally toothed plates (16) in the sequence shown and insert individually.

A different number of external plates (17) and internal plates (16) are fitted depending on the transmission version.

Place new externally toothed plates and internally toothed plates in ATF oil 1 h before installation.

Design of multiple-disc clutch

5 Input shaft (with external plate carrier K2)
9 Piston
14 Disk spring
15 External plate (1.8 mm)
16 Internally toothed plates
17 External plates (2.8 mm)
18 Externally toothed disk (4.0 mm)
19 Circlip

L Toothed plate play





2 Install circlip (19).

Both ends of the circlip (19) must be seated on a lug of the external plate carrier (arrows).





3 Mount pressure device on externally toothed plate (18).
4 Press clutch pack together as far as the end stop using pressure device and a lever press.

The marking ring (bottom arrow) must still be visible.

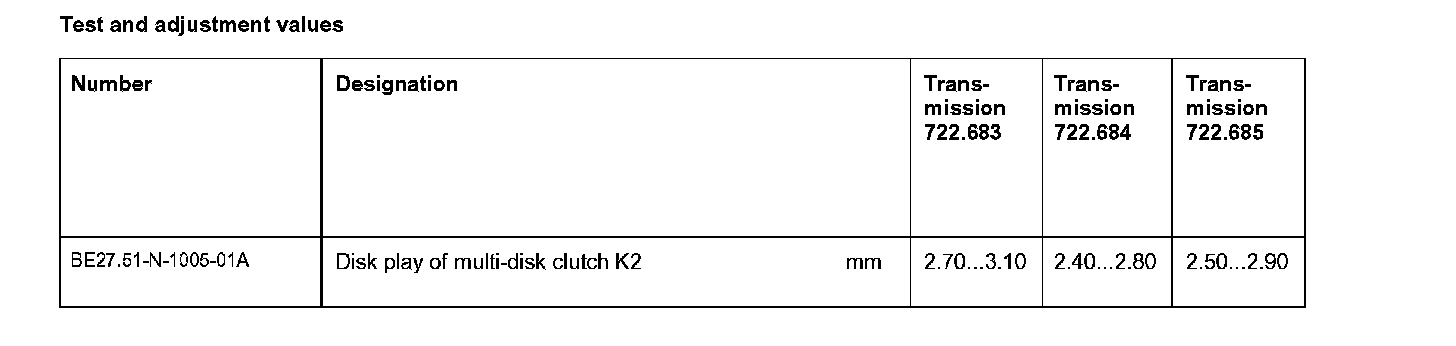

5 Using a feeler gauge, check plate play (L) at three points between circlip (19) and external plate (18).

To measure the toothed plate play (L) the circlip (19) must abut with the upper contact surface of the groove.

If necessary, adjust the toothed plate play (L) by installing a circlip (19) of corresponding thickness.
