AR27.50-D-0880A Disassemble/Assemble Multi-Disk Brake B2

AR27.50-D-0880A Disassemble/Assemble Multi-disk Brake B2


TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

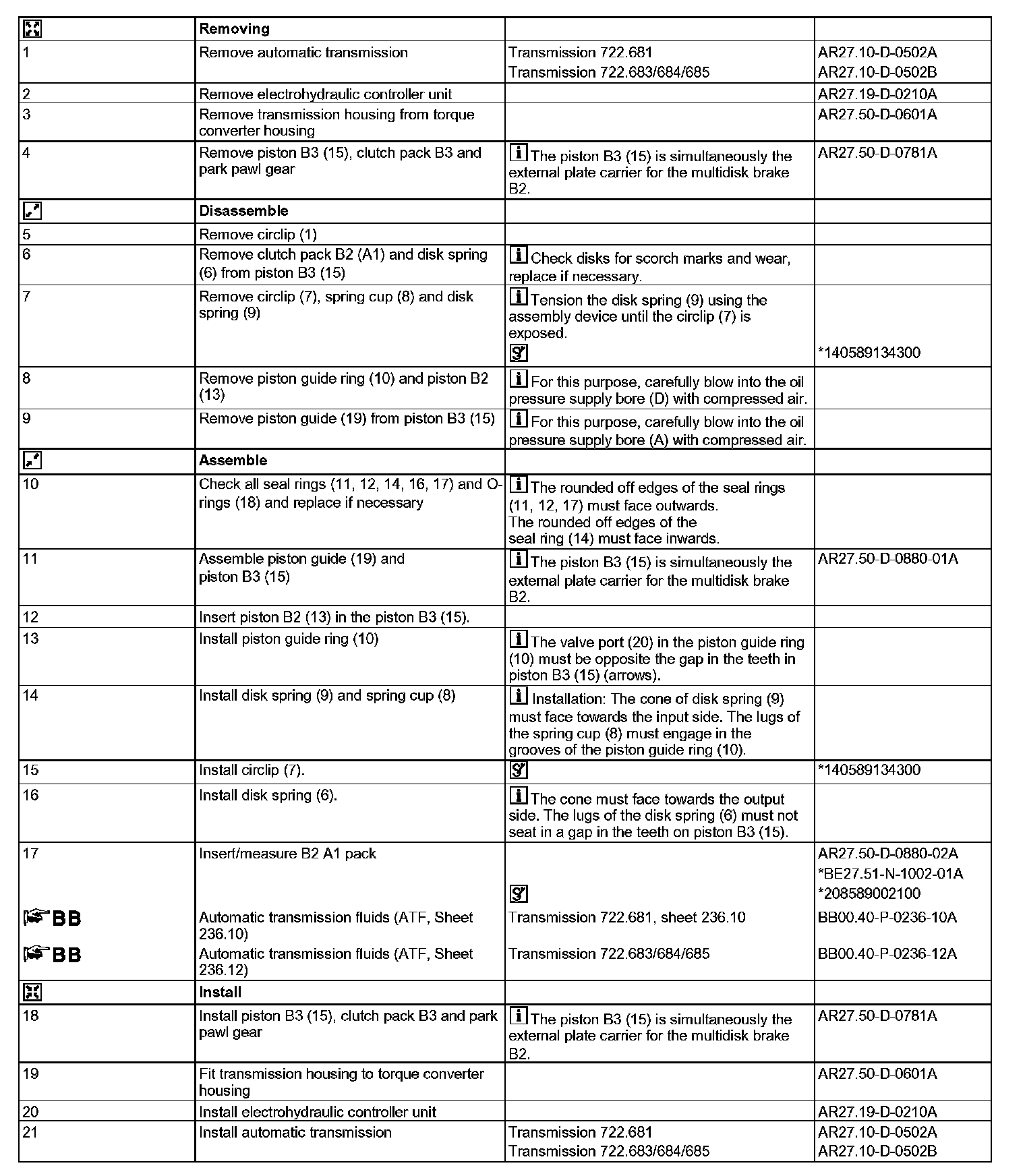

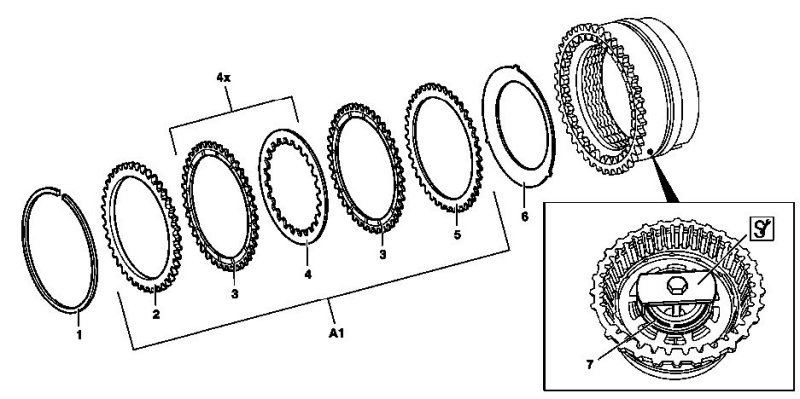

1 Circlip
2 External plate (6.5 mm)
3 External plate (1.8 mm)
4 Internally toothed plate
5 External plate (1.8 mm)
6 Disk spring
7 Circlip

A1 Disk pack B2

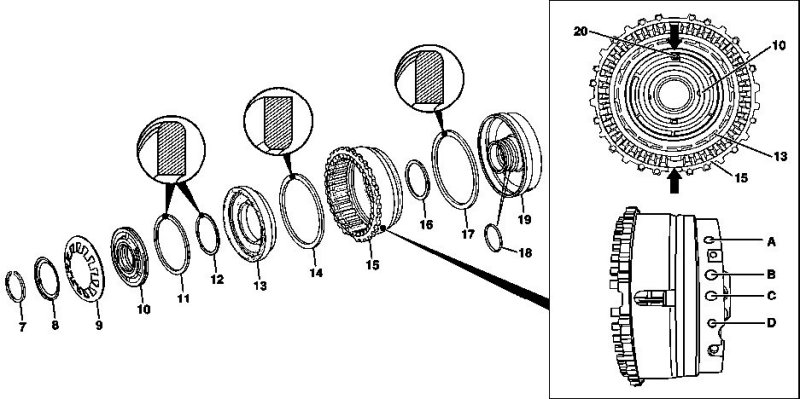

7 Circlip
8 Spring cup
9 Disk spring
10 Piston guide ring
11 Seal ring (to piston guide ring)
12 Seal ring (to piston guide ring)
13 Piston B2
14 Seal ring (on piston B3)
15 Piston B3 (external plate carrier B2)
16 Seal ring (on piston B3)
17 Seal ring (on piston B3)
18 O-ring
19 Piston guide (B2 and B3)
20 Valve port

A Oil pressure supply bore (piston B3)
B Oil pressure supply bore (piston B2)
C Oil pressure supply bore (multidisk clutch K3)
D Oil pressure supply bore (piston B2)











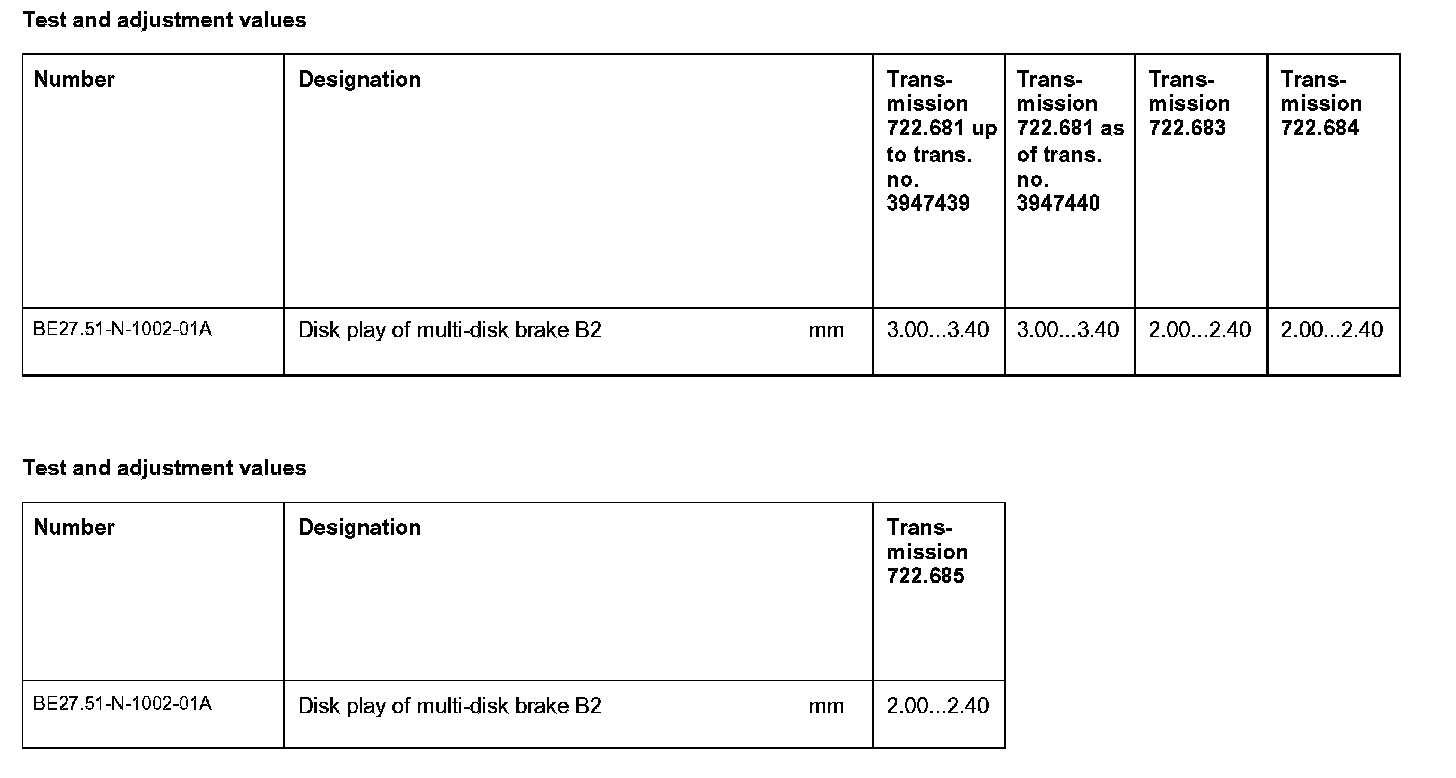

140 589 13 43 00
Assembly tool





208 589 00 21 00
Thrust device
