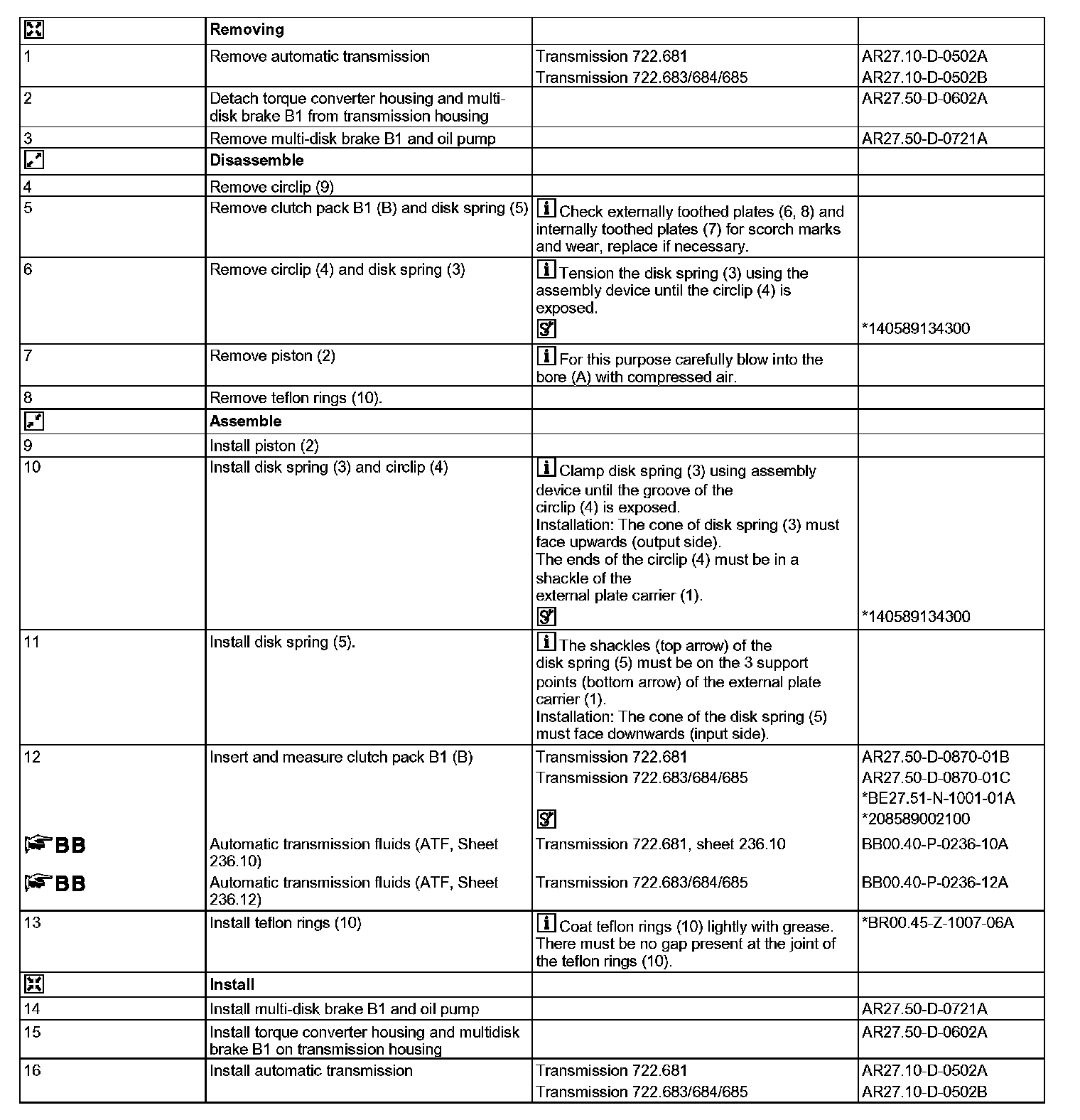

AR27.50-D-0870B Disassemble/Assemble Multi-Disk Brake B1

AR27.50-D-0870B Disassemble/Assemble Multi-disk Brake B1


TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7





Shown on transmission 722.681

1 External plate carrier
2 Piston
3 Disk spring
4 Circlip
5 Disk spring
6 Externally toothed plate (a different number of externally toothed plates are fitted depending on the transmission version)
7 Internally toothed plate (a different number of internally toothed plates are fitted depending on the transmission version).
8 Externally toothed disk (4.0 mm)
9 Circlip

A Bore (oil pressure supply)
B Disk pack B1





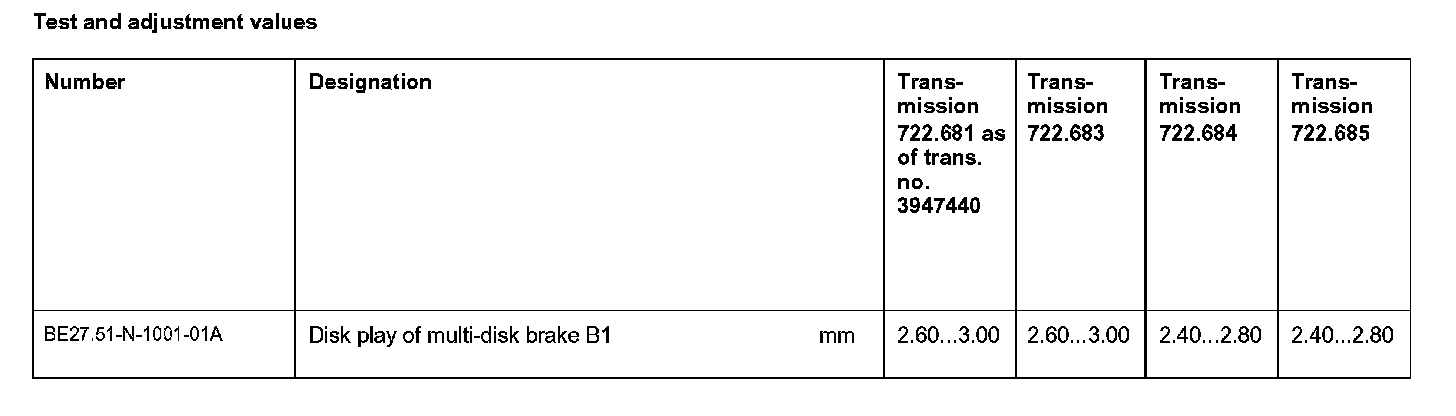

1 External plate carrier
5 Disk spring
10 Teflon ring











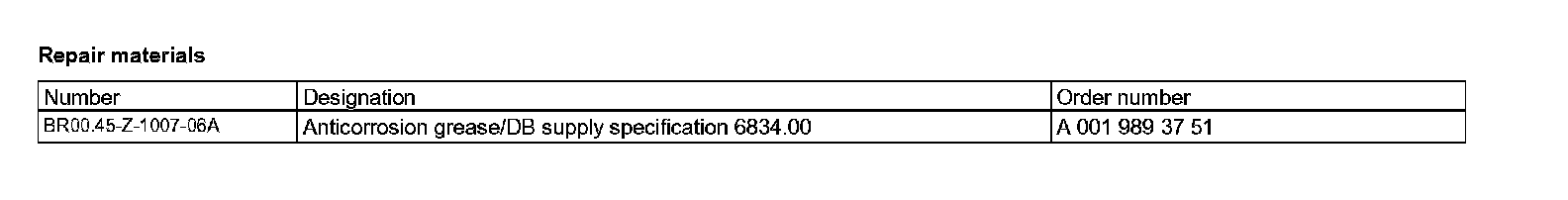

140 589 13 43 00
Assembly tool





208 589 00 21 00
Thrust device
