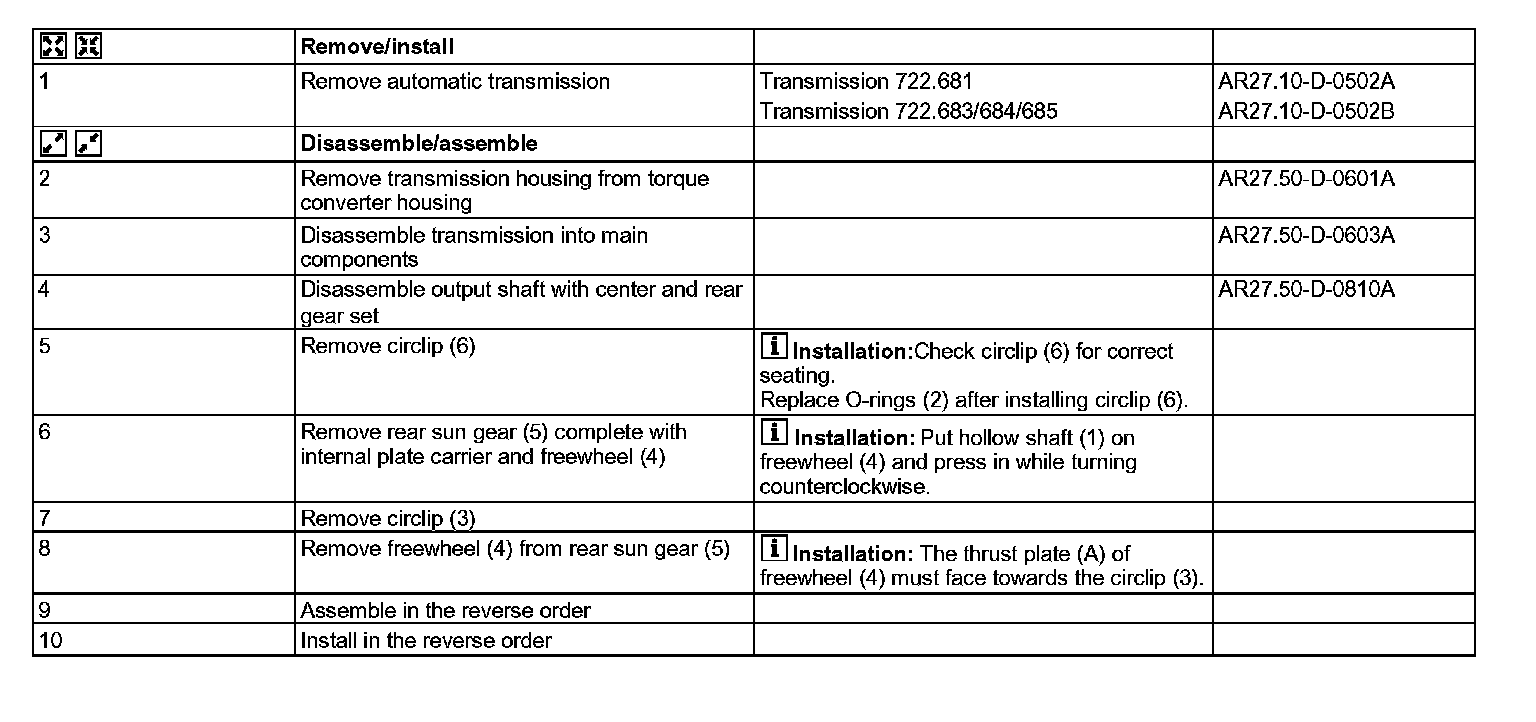

AR27.50-D-0850A Disassemble/Assemble Rear Hollow Shaft With Rear Freewheel

AR27.50-D-0850A Disassemble/Assemble Rear Hollow Shaft With Rear Freewheel


TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

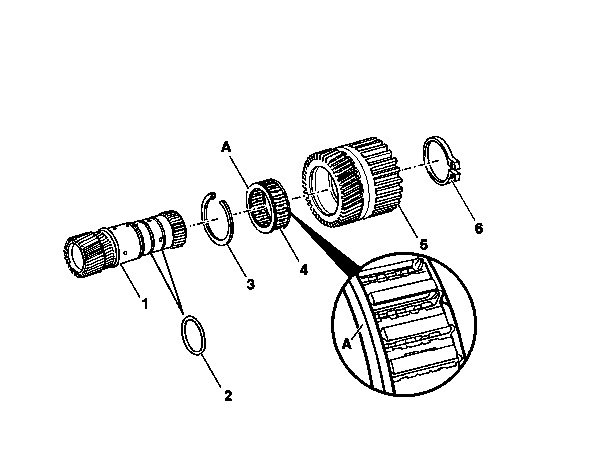

1 Hollow shaft
2 O-ring
3 Circlip
4 Freewheel
5 Rear sun gear (with internal plate carrier of clutch K3)
6 Circlip

A Thrust plate
