AR27.50-D-0810A Disassemble/Assemble Output Shaft With Center and Rear Gear Set

AR27.50-D-0810A Disassemble/Assemble Output Shaft With Center and Rear Gear Set


TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

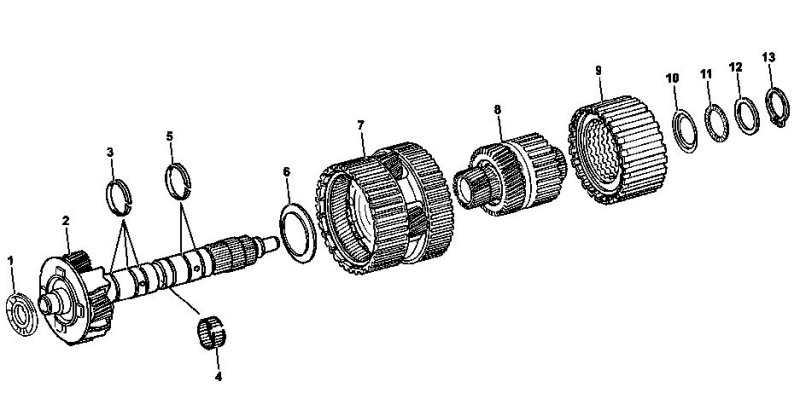

1 Needle roller bearing
2 Output shaft with center gear set
3 Teflon ring
4 Needle cage
5 Teflon ring
6 Thrust plate
7 Rear gear set
8 Rear hollow shaft
9 K3 clutch
10 Thrust plate
11 Needle roller bearing
12 Shim
13 Circlip
