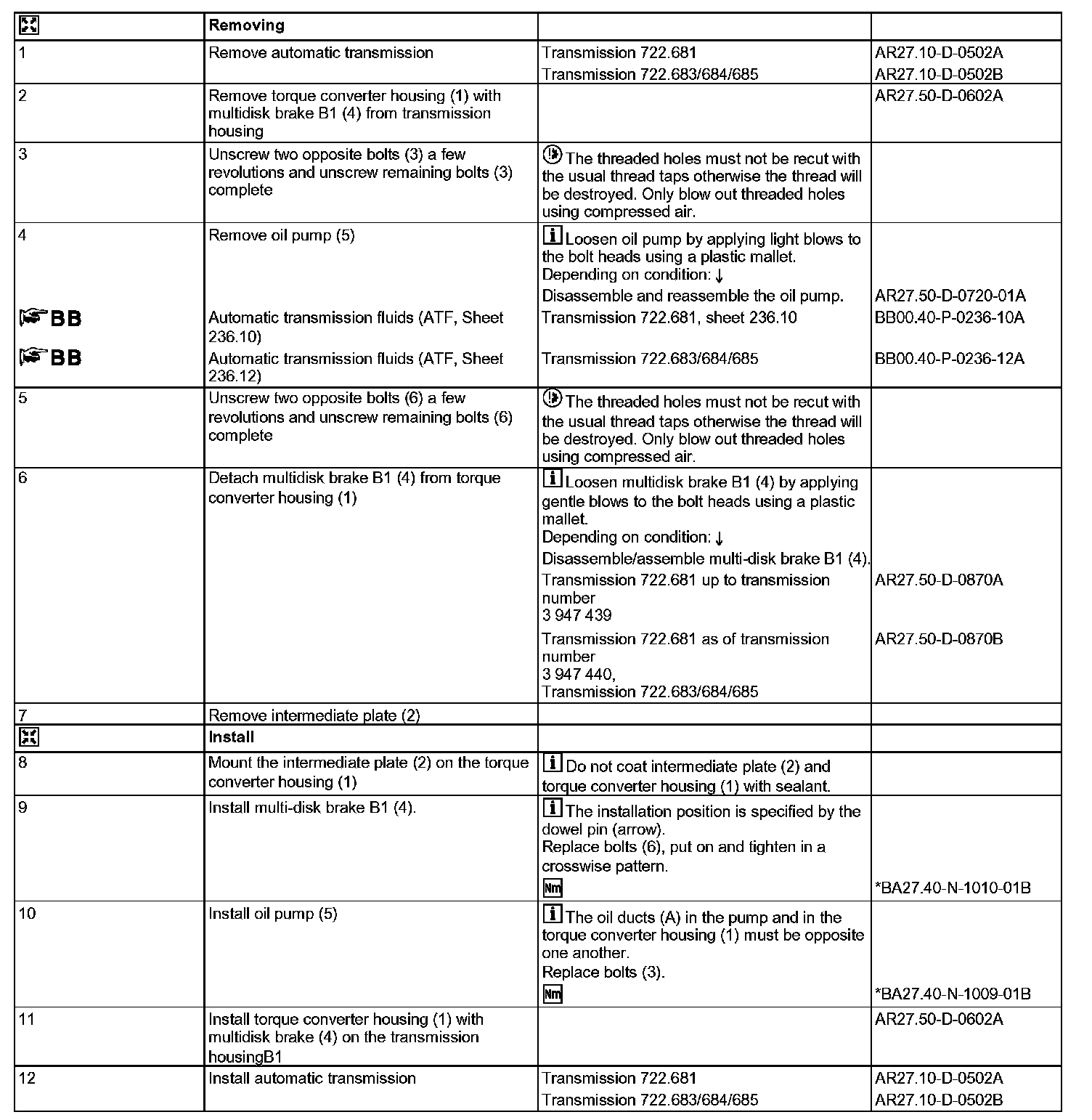

AR27.50-D-0721A Remove/Install Multi-Disk Brake B1 and Oil Pump

AR27.50-D-0721A Remove/Install Multi-disk Brake B1 and Oil Pump


TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

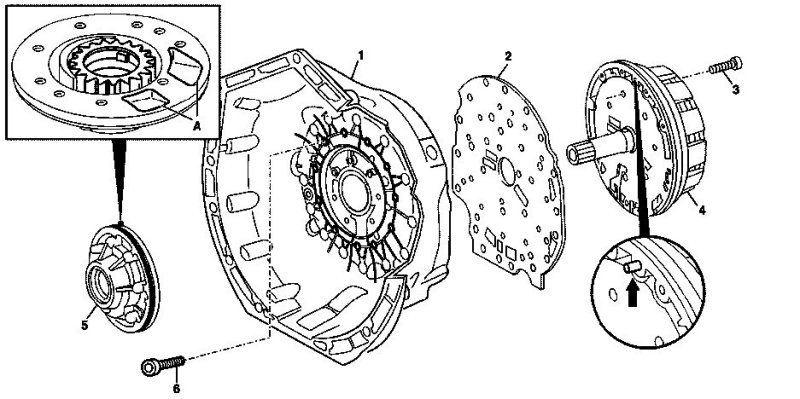

1 Torque converter housing
2 Intermediate panel
3 Bolt (M8X35)
4 Multidisk brake B1
5 Oil pump
6 Bolt (M6X32)

A Oil ducts
