AR27.40-D-0205B Remove/Install Radial Shaft Sealing Ring at Output Flange

AR27.40-D-0205B Remove/Install Radial Shaft Sealing Ring At Output Flange


- TRANSMISSION 722.683 /684 /685 in MODEL 906
- except CODE (ZG1) Engageable all-wheel drive
- except CODE (ZG2) Permanent all-wheel drive
- except CODE (ZG3) Engageable all-wheel drive with gear reduction
- except CODE (ZG4) Permanent all-wheel drive with gear reduction

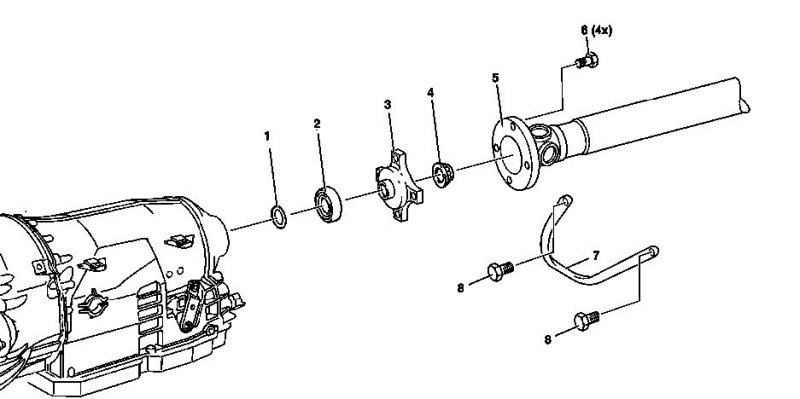

Shown on transmission 722.681

1 Thrust plate
2 Radial shaft seal
3 Output flange
4 Collar nut
5 Propeller shaft
6 Screw
7 Securing clip
8 Screw




















126 589 02 09 00
Wrench socket





901 589 00 07 00
Pin wrench





000 589 89 33 00
Puller





716 589 01 15 00
Drift





140 589 12 15 00
Drift
