AR27.20-D-0200-03A Drain Transmission Oil From Torque Converter

AR27.20-D-0200-03A Drain Transmission Oil From Torque Converter
- TRANSMISSION 722.683
- TRANSMISSION 722.684
- TRANSMISSION 722.685
- TRANSMISSION 722.686








906 589 00 03 00
Ratchet box wrench





906 589 08 63 00
Drain plate





1 Remove plug on bottom of bell housing.

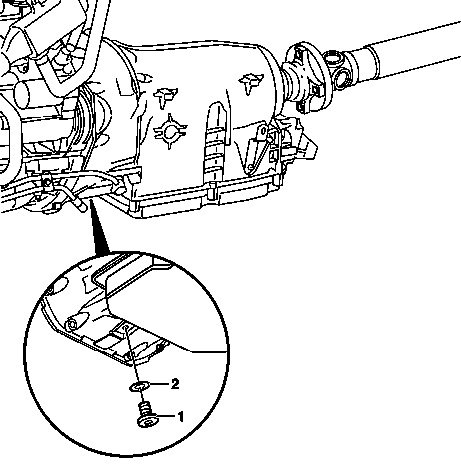

2 Crank engine until the oil drain screw (1) can be seen on the torque converter.
3 Clean area around oil drain screw (1) and torque converter.

Absolute cleanliness must be observed to avoid any malfunctions or damage to the transmission.

4 Unscrew oil drain screw (1) torque converter.

Allow the oil to drain completely in the hot condition.

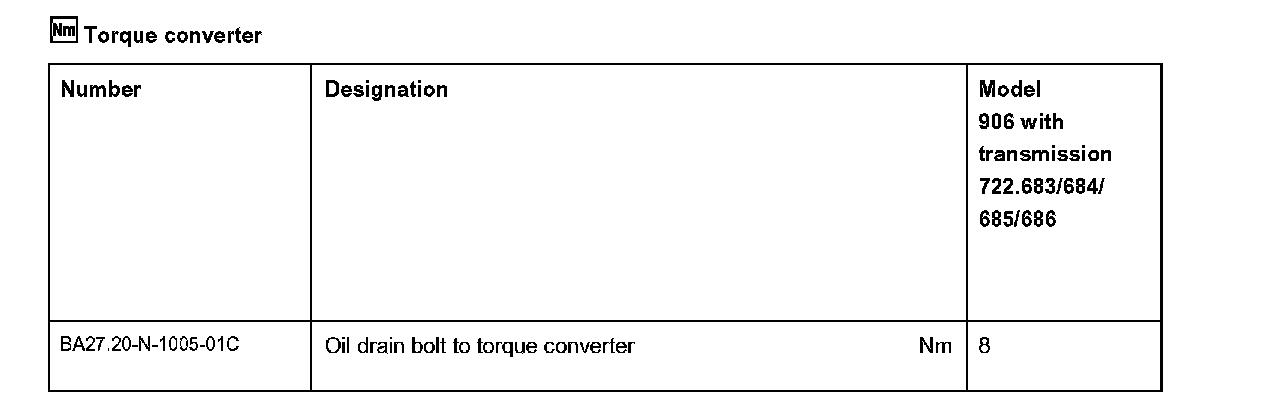

5 Screw in oil drain screw (1) torque converter and tighten.

Replace sealing ring (2) when assembling.
