Shift pressure regulating valve

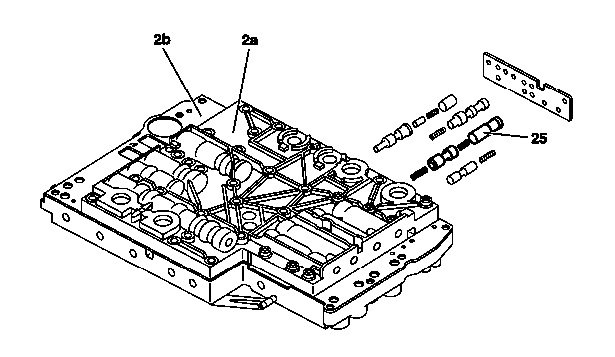

2a Valve body of shift plate
2b Valve body of shift plate
25 Control valve pressure regulating valve

Location

The control valve pressure regulating valve is located in the shift plate valve housing.

Task

Controls the control valve pressure.

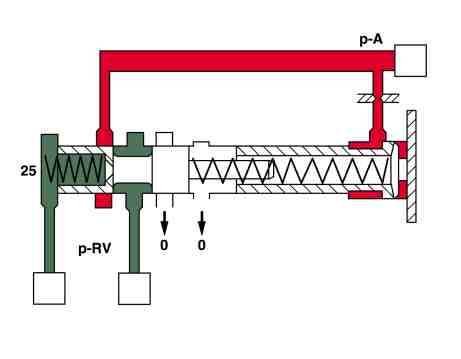

0 Oil sump drain
25 Control valve pressure regulating valve

p-A Working pressure
p-RV Control valve pressure

Function

The control valve pressure is regulated at the control valve pressure regulating valve up to the maximum pressure depending on the working pressure.
