Shift pressure regulating valve

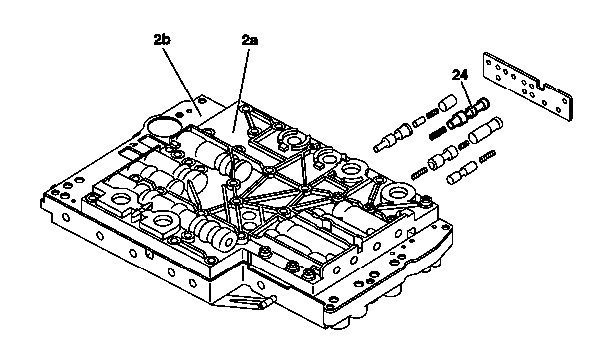

2a Valve body of shift plate
2b Valve body of shift plate
24 Shift pressure regulating valve

Location

The shift pressure regulating valve is located in the valve housing of the shift plate.

Task

It regulates the shift pressure.

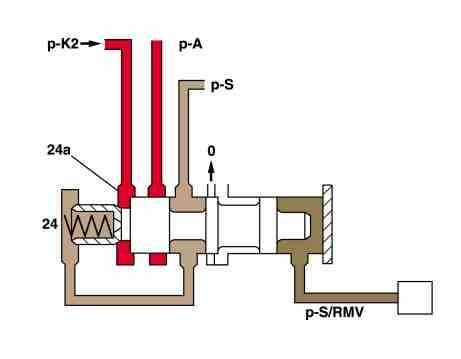

0 Oil sump drain
24 Shift pressure regulating valve
24a Annular surface

p-A Working pressure
p-K2 Pressure applied to the multidisk clutch K2
p-S Shift pressure
p-S/RMV Shift pressure control solenoid valve

Function

The level of shift pressure is determined by the shift pressure control solenoid valve (Y3/6y2) and shift pressure regulating valve. At the shift pressure regulating valve pressure from the multidisk clutch is also applied to the annular surface K2. The shift pressure in 2nd gear is also reduced.
