GF27.60-D-3011H Manual Drive Mode Selection, Function




GF27.60-D-3011H Manual Drive Mode Selection, Function
- TRANSMISSION 722.6

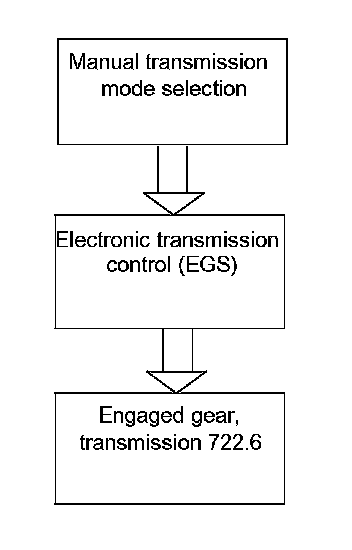

With the EWM control unit (N15/5) it is possible to adapt the automatic sequence of the shift to the particular operating conditions.

The shift range can in fact be changed in the forward gears while driving, however the electronic transmission control (ETC) prevents a shift at an unacceptably high or unacceptably low engine speed.
