GF27.19-D-5160HB Solenoid Valve, Component Description

GF27.19-D-5160HB Solenoid Valve, Component Description
- TRANSMISSION 722.6


Torque converter lock-up clutch PWM solenoid valve





2a Valve body of shift plate
2c Leaf spring

Y3/6 Electrical control unit
Y3/6y6 Torque converter lockup PWM solenoid valve

Location

The torque converter lockup PWM solenoid valve is located on the supporting body of the electric control unit and is pressed against the shift plate valve body by a leaf spring.

Task

The task of the torque converter lockup PWM solenoid valve is to control the pressure for the torque converter lockup clutch.

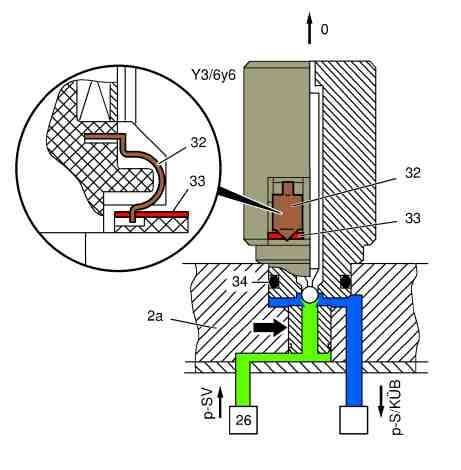

0 Oil sump drain
2a Valve body of shift plate
26 Shift valve pressure regulating valve
32 Contact spring
33 Conductor track
34 O-ring

p-S/KUB Torque converter lockup control pressure
p-SV Shift valve pressure

Y3/6y6 Torque converter lockup PWM solenoid valve

Arrow: Gap seal

Design

The torque converter lockup PWM solenoid valve is sealed by an O- ring and gap seal (arrow) towards the shift plate valve housing. The contact springs on the PWM converter lockup solenoid valve engage in a slot in the conductor tracks. The spring force of the contact springs means that reliable contacting is guaranteed.

Function

It converts a pulse-width modulated current actuated by the ETC [EGS] control unit (N15/3) into the corresponding hydraulic torque converter lockup control pressure.
