GF27.19-D-5149H Starter Lockout Contact, Component Description

GF27.19-D-5149H Starter Lockout Contact, Component Description

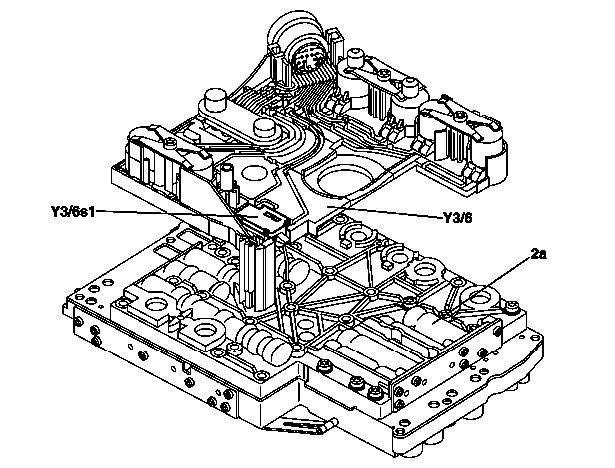

- TRANSMISSION 722.6






2a Valve body of shift plate

Y3/6 Electrical control unit
Y3/6s1 Starter lockout contact

Location

The starter lockout contact is located in the electrical control unit and is permanently connected to the conductor tracks.

Task

The starter lockout contact detects the selector valve and gear selection switch positions "P" and "N".

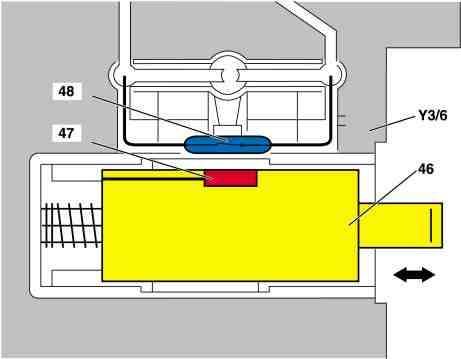

Body

46 Plunger
47 Permanent magnet
48 Dry-reed contact

Y3/6 Electrical control unit

Function

The starter lockout contact is operated in gear selector switch positions "P" and "N". As a result the permanent magnet is moved away by the dry-reed contact. The dry-reed contact is opened. The ETC control unit (N15/3) receives an electrical signal. The circuit to the starter (M1) is closed in selector lever positions "P" and "N".
