GF27.19-D-5147HS Control Solenoid Valve Component Description

GF27.19-D-5147HS Control Solenoid Valve Component Description
- TRANSMISSION 722.6

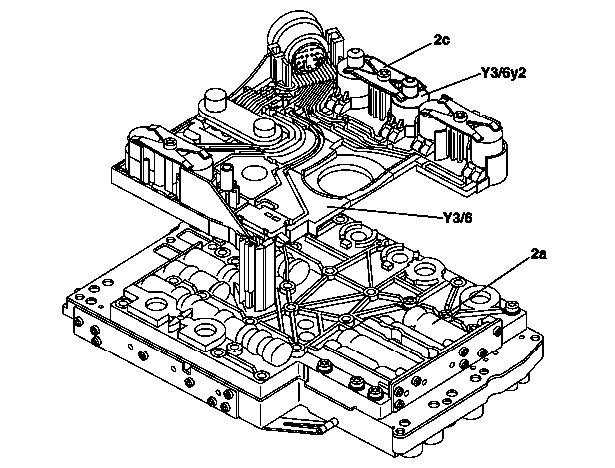

Modulating pressure control solenoid valve





2a Valve body of shift plate
2c Leaf spring

Y3/6 Electrical control unit
Y3/6y2 Shift pressure control solenoid valve

Location

The shift pressure control solenoid valve is located on the supporting body of the electric control unit and is pressed against the shift plate valve body by means of a leaf spring.

Task

The task of the shift pressure control solenoid valve is to control the modulating pressure depending on constantly changing operating conditions, e.g. such as load change and gear change.

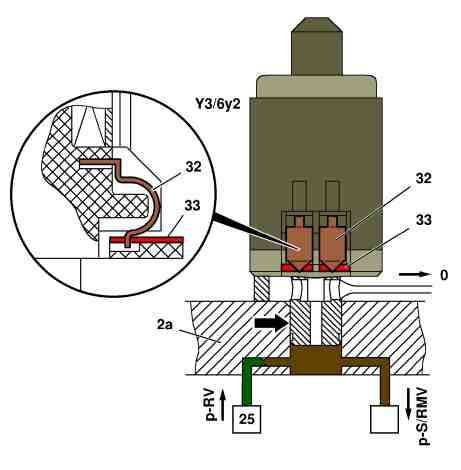

0 Oil sump drain
2a Valve body of shift plate
25 Control valve pressure regulating valve
32 Contact spring
33 Conductor track

p-RV Control valve pressure
p-S/RMV Shift pressure control solenoid valve

Y3/6y2 Shift pressure control solenoid valve

Design

The shift pressure control solenoid valve has a snug fit and is sealed with a gap seal facing the shift plate valve body.

The contact springs on the shift pressure control solenoid valve grip into a slot in the conductor tracks. The spring force of the contact springs means that reliable contacting is guaranteed.

Function

The shift pressure regulating solenoid valve assigns a proportional pressure to the current which is controlled by the ETC control unit (N15/3) according to the load.
