GF27.19-D-5147HM Control Solenoid Valve Component Description

GF27.19-D-5147HM Control Solenoid Valve Component Description
- TRANSMISSION 722.6

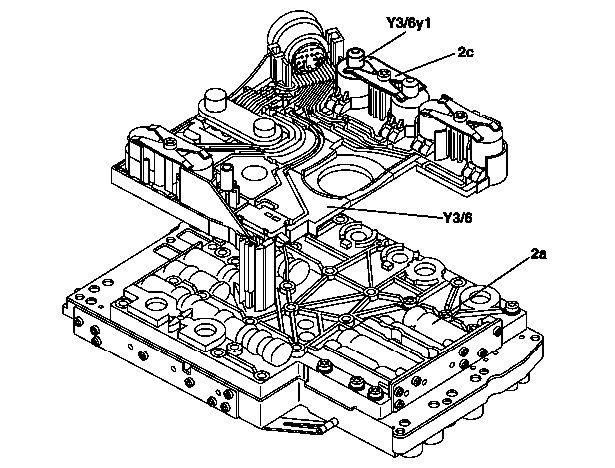

Modulating pressure control solenoid valve





2a Valve body of shift plate
2c Leaf spring

Y3/6 Electrical control unit
Y3/6y1 Modulating pressure control solenoid valve

Location

The modulating pressure control solenoid valve is located on the supporting body of the electric control unit and is pressed against the shift plate valve body by means of a leaf spring.

Task

The task of the modulating pressure control solenoid valve is to control the modulating pressure depending on the constantly changing operating conditions, e.g. such as load change and gear change.

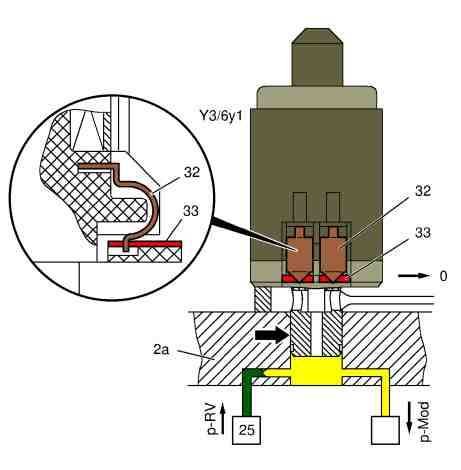

0 Oil sump drain
2a Valve body of shift plate
25 Control valve pressure regulating valve
32 Contact spring
33 Conductor track

p-Mod Modulating pressure
p-RV Control valve pressure

Y3/6y1 Modulating pressure control solenoid valve

Arrow: Gap seal

Design

The modulating pressure control solenoid valve has a snug fit and is sealed with a gap seal facing the shift plate valve body

The contact springs on the modulating pressure control solenoid valve grip into a slot in the conductor tracks. The spring force of the contact springs means that reliable contacting is guaranteed.

Function

The modulating pressure control solenoid valve assigns a proportional pressure to a current regulated by the ETC [EGS] control unit (N15/3) in a load-dependent manner.
