GF27.10-D-0001-07H Automatic Transmission (AT), Location of Mechanical Parts

GF27.10-D-0001-07H Automatic Transmission (AT), Location of Mechanical Parts

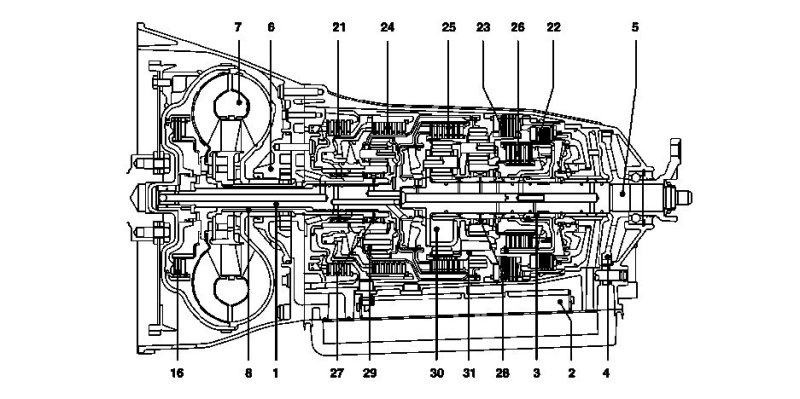

- TRANSMISSION 722.6





1 Input shaft
2 Electrohydraulic control unit
3 Intermediate shaft
4 Park pawl gear
5 Output shaft
6 Oil pump
7 Torque converter
8 Stator shaft
16 Torque converter lockup clutch
21 Multidisk brake B1
22 Multidisk brake B2
23 Multidisk brake B3
24 Multidisk clutch K1
25 Multidisk clutch K2
26 Multidisk clutch K3
27 Overrunning clutch F1
28 Overrunning clutch F2
29 Front planetary gear set
30 Center planetary gear set
31 Rear planetary gear set
