Mercedes Benz Truck
>>
2011
>>
Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Description and Operation
>>

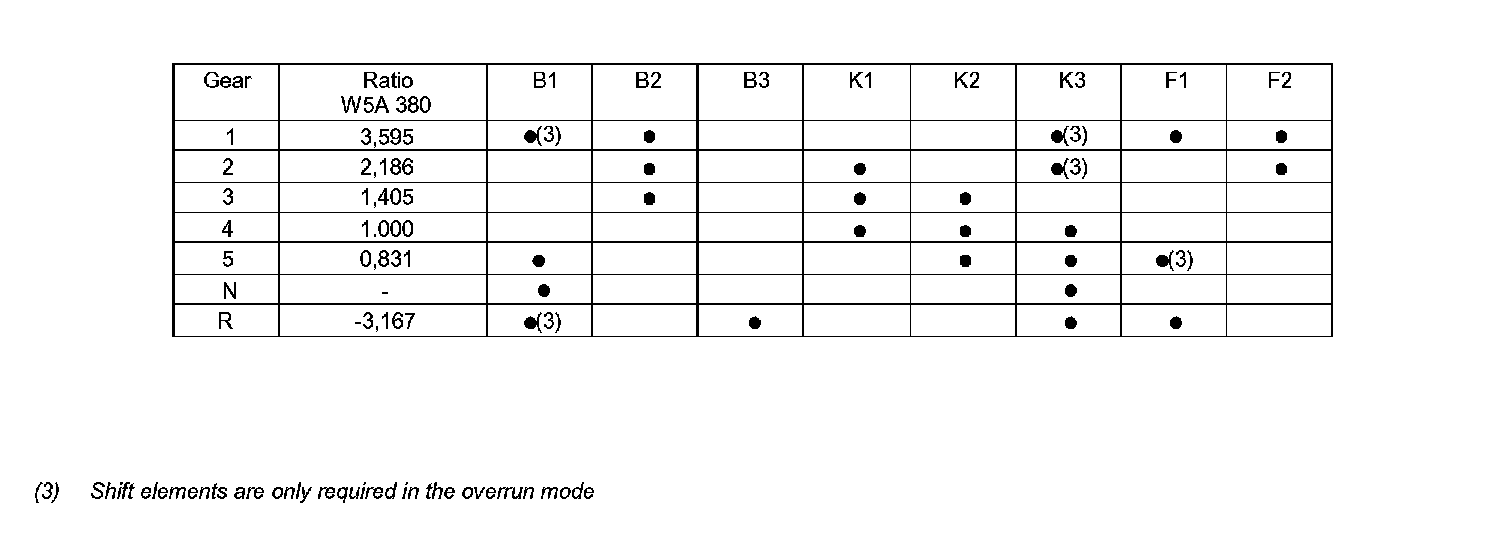

GF27.10-D-0001-01H Automatic Transmission (AT), Gear Ratios
GF27.10-D-0001-01H Automatic Transmission (AT), Gear Ratios
GF27.10-D-0001-01H Automatic Transmission (AT), Gear Ratios
-
TRANSMISSION 722.6
