Procedures

AR27.50-D-0601A Detach/Attach Transmission Housing on Torque Converter Housing.


TRANSMISSION 722.683 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.684 in MODEL 906.1 /2 /6 /7
TRANSMISSION 722.685 in MODEL 906.1 /2 /6 /7

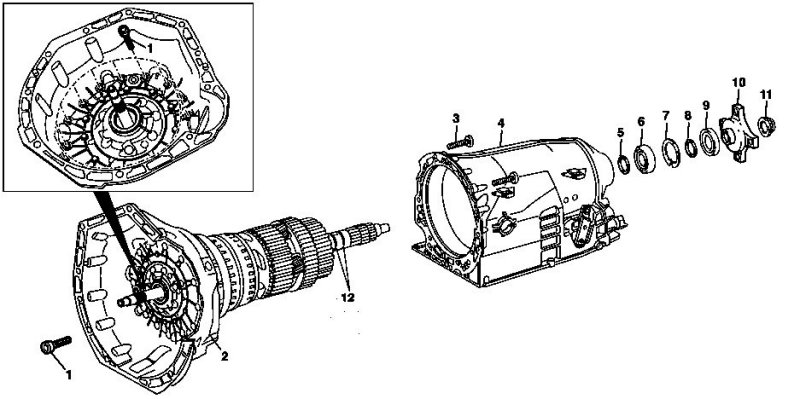

1 Screw
2 Torque converter housing
3 Screw
4 Transmission housing
5 Shim
6 Grooved ball bearing
7 Retaining ring
8 Thrust plate
9 Radial shaft seal
10 Output flange
11 Collar nut
12 Teflon rings


























126 589 01 62 00
Grab handle





001 589 50 33 00
Puller





140 589 06 34 00
Chuck





711 589 01 15 00
Drift





116 589 06 59 00
Assembly stand





140 589 34 63 00
Support plate





126 589 02 09 00
Wrench socket





140 589 12 15 00
Drift





901 589 00 07 00
Pin wrench





000 589 89 33 00
Puller





716 589 01 15 00
Drift





126 589 04 31 00
Parallel support
