Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

AR27.10-D-0500-04WE Remove/Install Oil Filler Pipe
- TRANSMISSION 722.686








Shown on vehicle up to 31.8.10

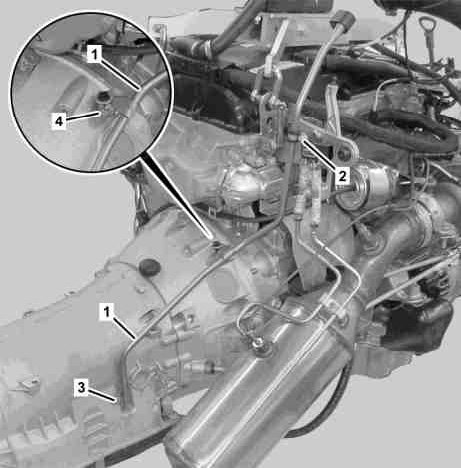

1 Remove bolts (2, 3).

As of 1.9.10 the bolt (2) is on the cylinder head.

2 Remove bolt (4) and pull oil filler pipe (1) upwards and out of the transmission housing.

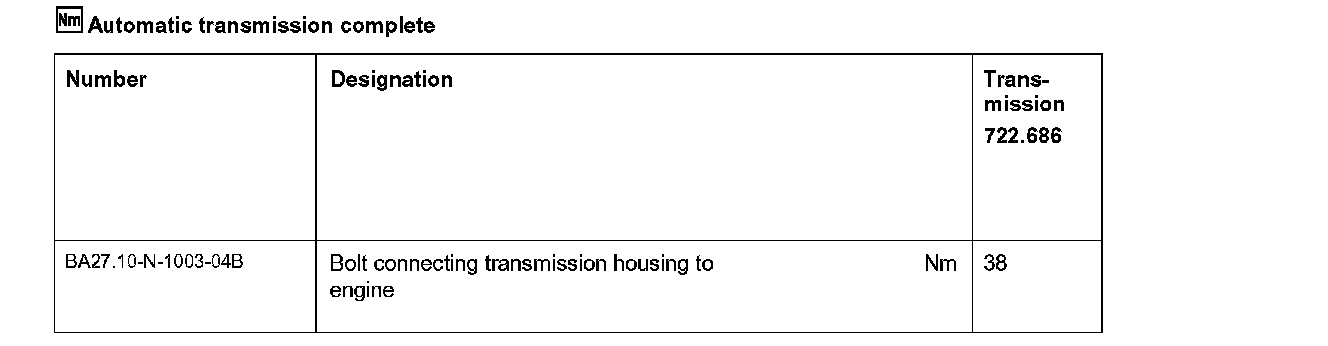

Installation: Replace sealing ring. Observe tightening torque for bolt (4).

3 Install in the reverse order.
