Trailing Arm Bushing: Service and Repair

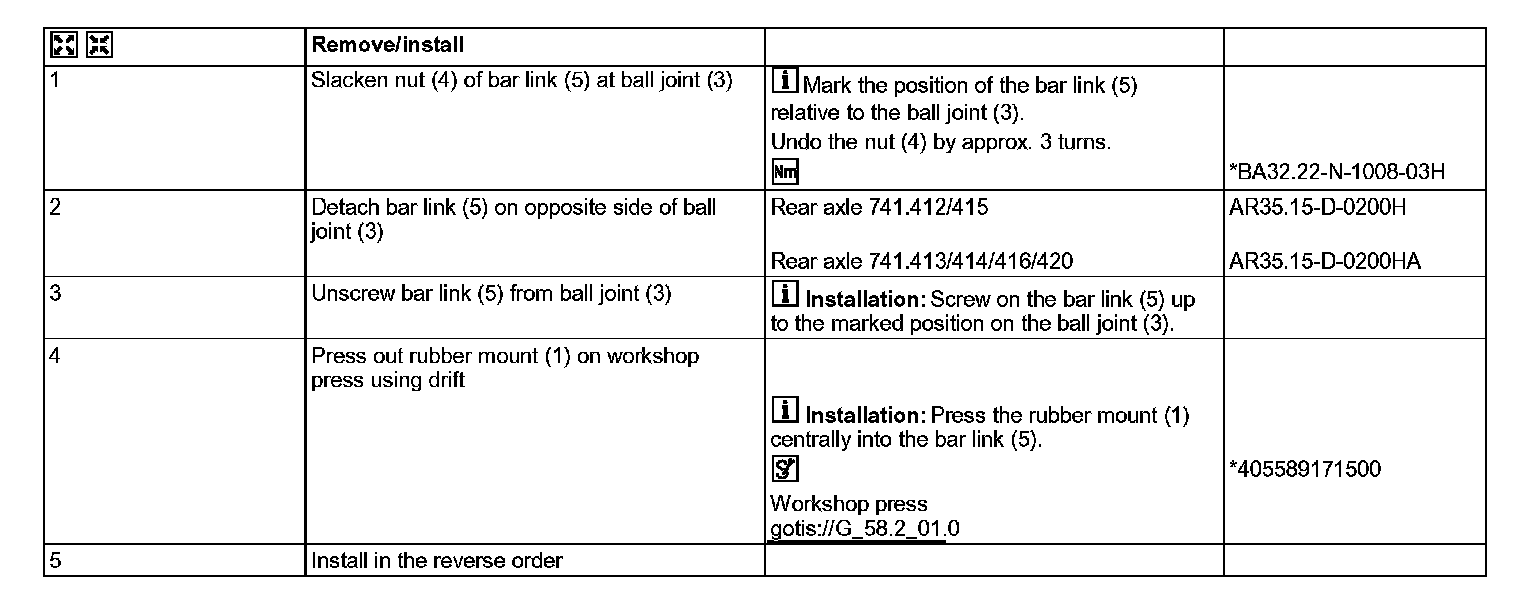

AR35.15-D-0202H Remove/install bar link rubber mount
- REAR AXLE 741.412 /415 in MODEL 906.13 /23 /63 /73
- with CODE (PL9) Air suspension, company VB-Airsuspension
- REAR AXLE 741.413 /414 /416 /420 in MODEL 906.15 /25 /65
- with CODE (PL9) Air suspension, company VB-Airsuspension





1 Rubber bushing
5 Bar link

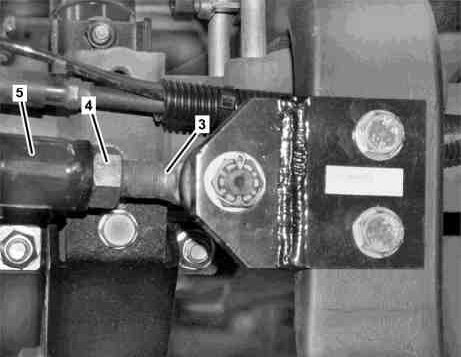

Illustrated on model 906.13

3 Ball joint
4 Nut
5 Bar link











405 589 17 15 00
Drift
