Trailing Arm: Service and Repair

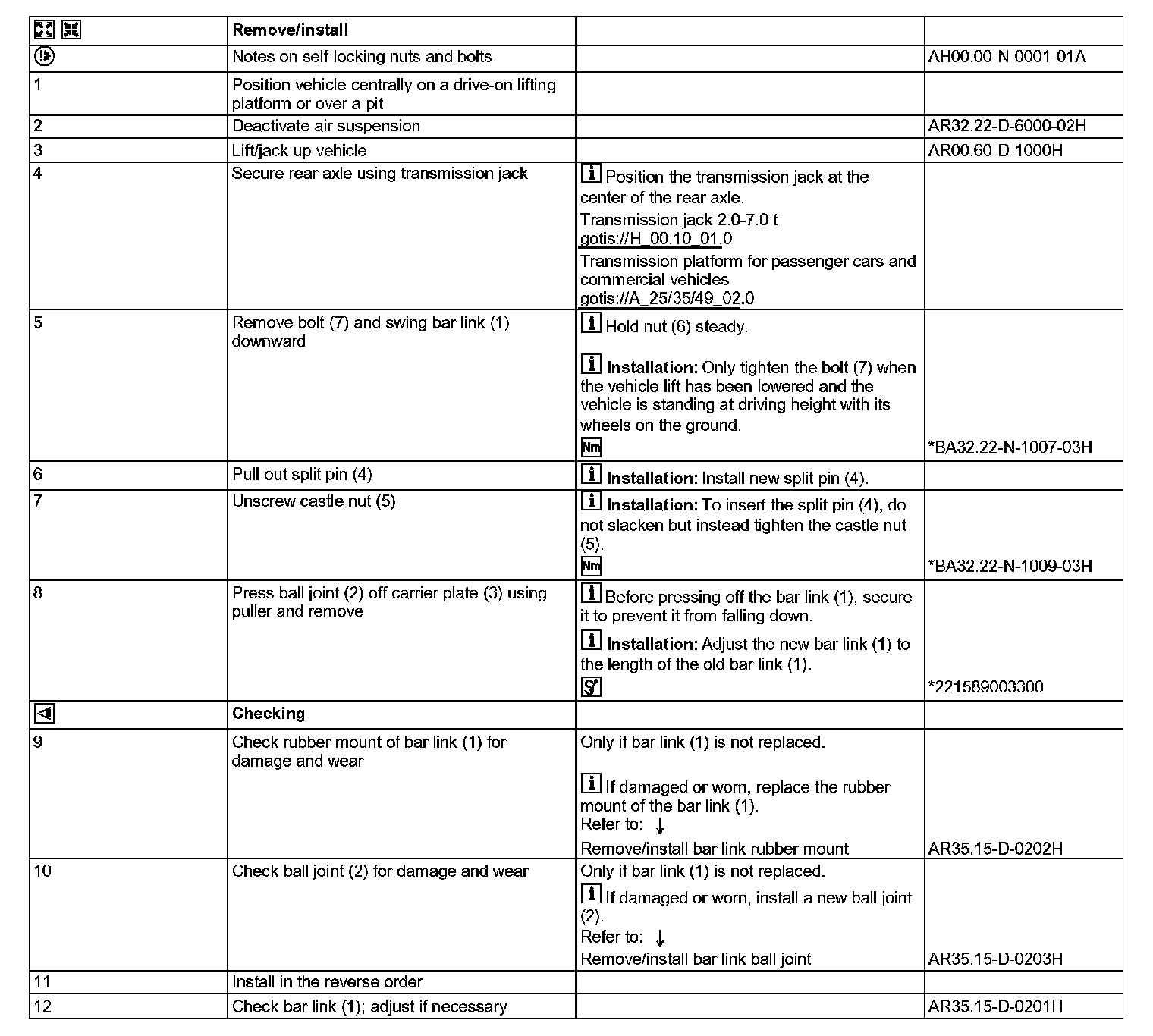

AR35.15-D-0200HA Remover/Install Bar-type Link
- REAR AXLE 741.413 /414 /416 /420 in MODEL 906.15 /25 /65
- with CODE (PL9) Air suspension, company VB-Airsuspension

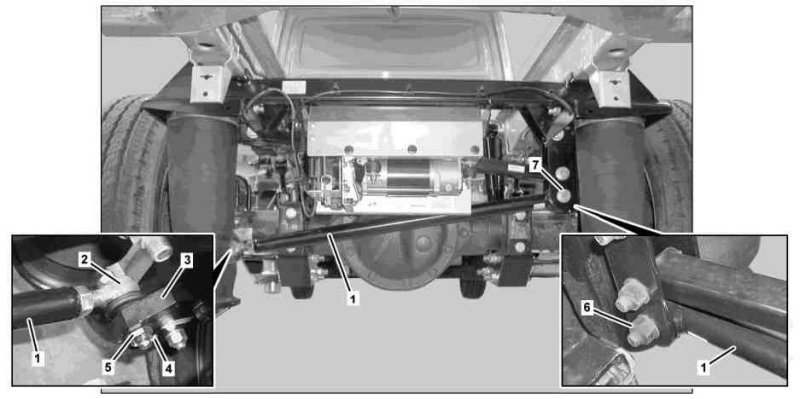

1 Bar link
2 Ball joint
3 Carrier plate
4 Split pin
5 Castle nut
6 Nut
7 Screw














221 589 00 33 00
Puller
