AR32.25-D-0100H Remove/Install Front Shock-Absorber Strut




AR32.25-D-0100H Remove/Install Front Shock-absorber Strut

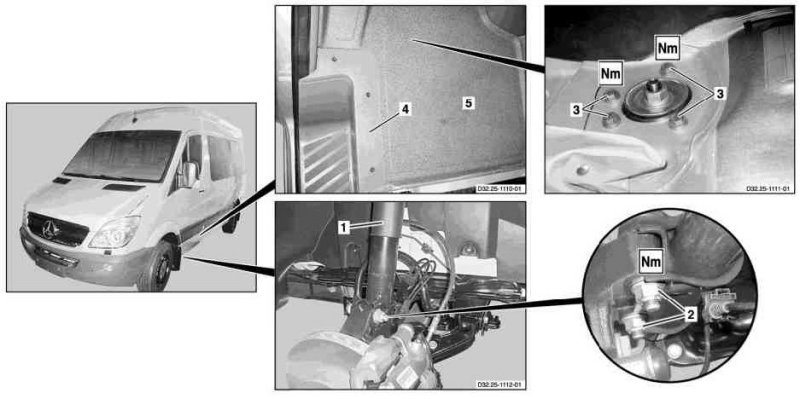

1 Shock-absorber strut
2 Nuts
3 Flange bolts
4 Cover strip
5 Floor Covering
