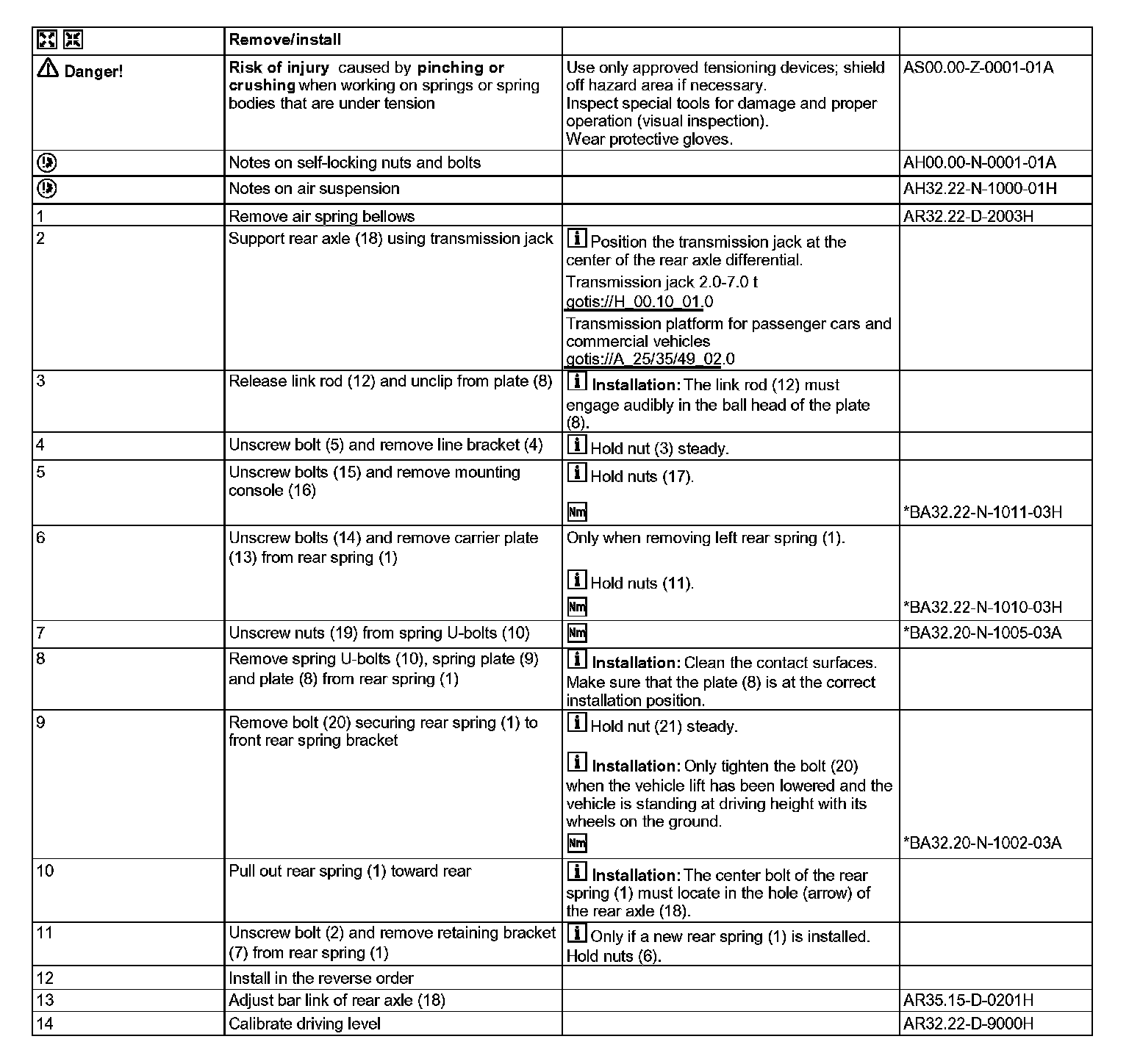

AR32.20-D-0230HC Remove/Install Rear Spring

AR32.20-D-0230HC Remove/Install Rear Spring
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- with CODE (PL9) Air suspension, company VB-Airsuspension

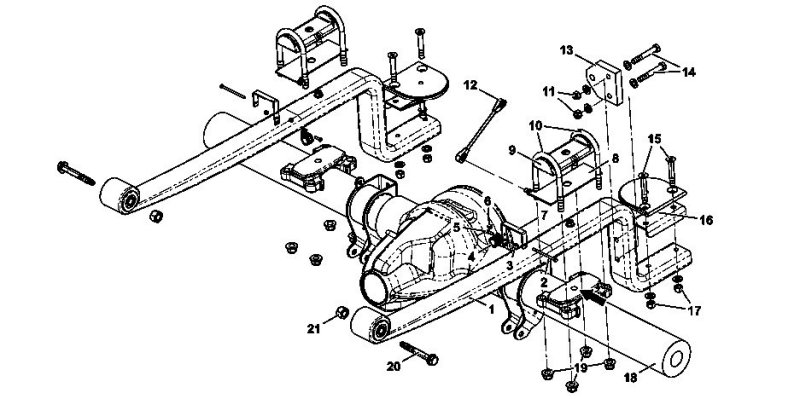

1 Rear spring
2 Screw
3 Nut
4 Line bracket
5 Screw
6 Nut
7 Retaining bracket
8 Seal
9 Spring plate
10 Spring U-bolt
11 Nuts
12 Link rod
13 Carrier plate
14 Bolts
15 Bolts
16 Mounting console
17 Nuts
18 Rear axle
19 Nuts
20 Screw
21 Nut
