Suspension Control ( Automatic - Electronic ): Testing and Inspection

AR32.22-D-8000H Check Air Suspension For Leaks
- MODEL 906.13 /23 /63 /73 with REAR AXLE 741.412 /415
- with CODE (PL9) Air suspension, company VB-Air suspension
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- with CODE (PL9) Air suspension, company VB-Air suspension

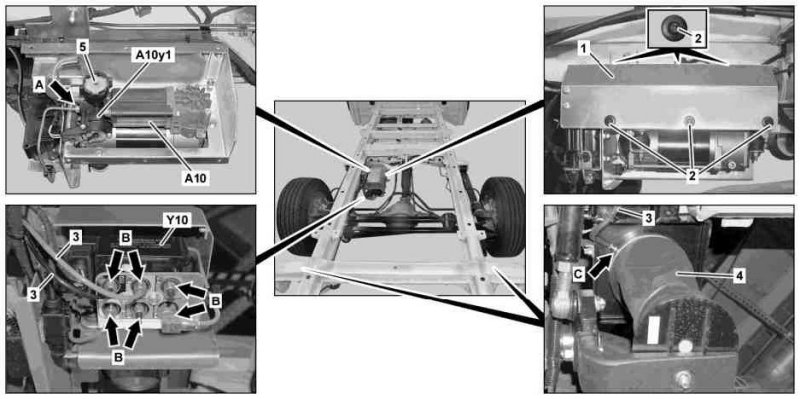

Shown on model 906.13

1 Cover
2 Expansion rivet
3 Compressed-air line
4 Air spring bellows
5 Discharge valve

A10 Compressor
A10y1 Air compressor solenoid valve
Y10 Valve unit
