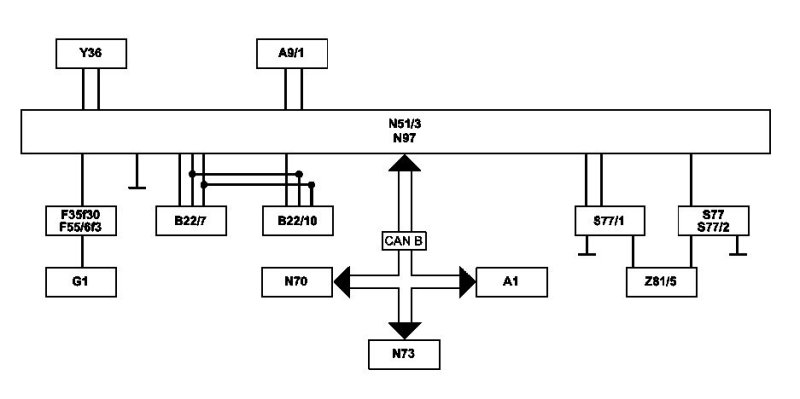

GF32.33-D-0005-02H Electronic Level Control (ELC (ENR)) Networking

GF32.33-D-0005-02H Electronic Level Control (ELC [ENR]) Networking
- with CODE (CE2) Rear air suspension





CAN-B Controller Area Network bus, class B (interior compartment) (CAN B)
A1 Instrument cluster
A9/1 Level control compressor
B22/7 Left rear level sensor
B22/10 Right rear level sensor
F35f30 Retainer for air spring or all- wheel drive (model 639)
F55/6f3 Fuse 30 (30 A) electronic level control (model 906)
G1 Battery
N51/3 Electronic level-control control unit (model 639)
N70 DBE control unit
N73 EIS [EZS] control unit
N97 Electronic level-control control unit (model 906)
S77 Raise or lower level control switch (model 639)
S77/1 Disable ELC switch
S77/2 Raise/lower electronic level control switch (model 906)
Y36 Level control valve unit
Z81/5 Circuit 58d connector sleeve
