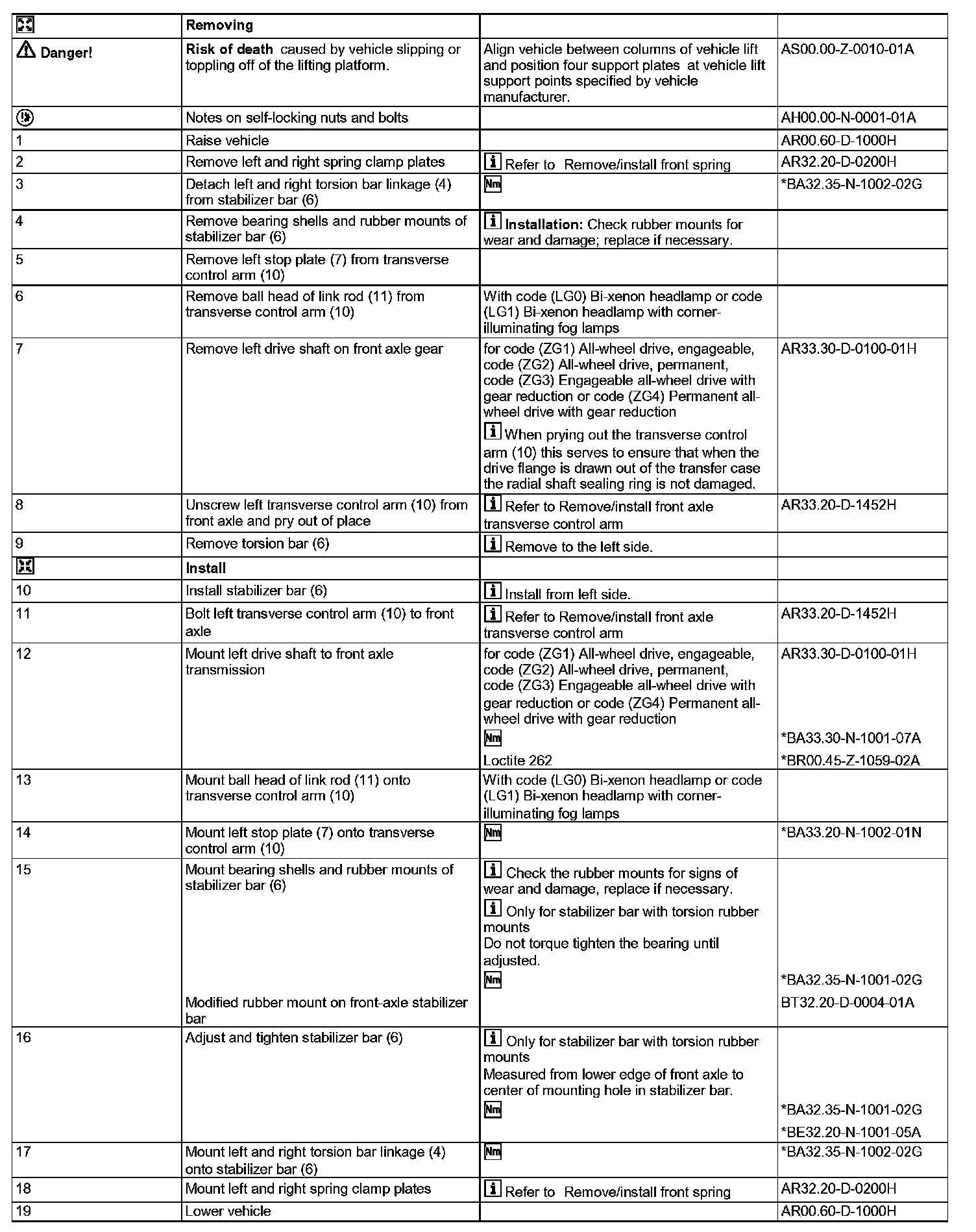

AR32.20-D-0300H Remove/Install Stabilizer Bar on Front Axle

AR32.20-D-0300H Remove/Install Stabilizer Bar on Front Axle

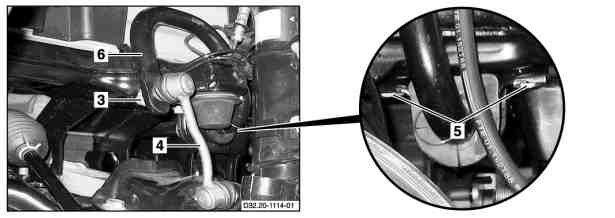

Shown on vehicles without code ZG1, ZG2, ZG3, ZG4 All-wheel drive

3 Nut
4 Torsion bar linkage
5 Bolts
6 Stabilizer bar








7 Stop plate
10 Transverse control arm
11 Link rod (for bi-xenon headlamps only)

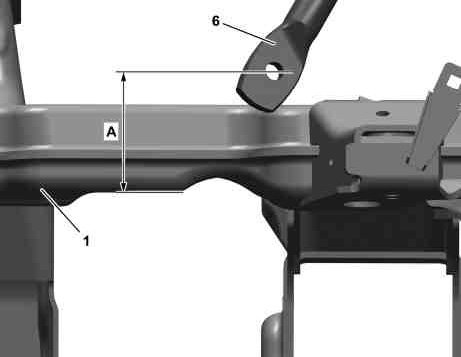

1 Front axle
6 Stabilizer bar

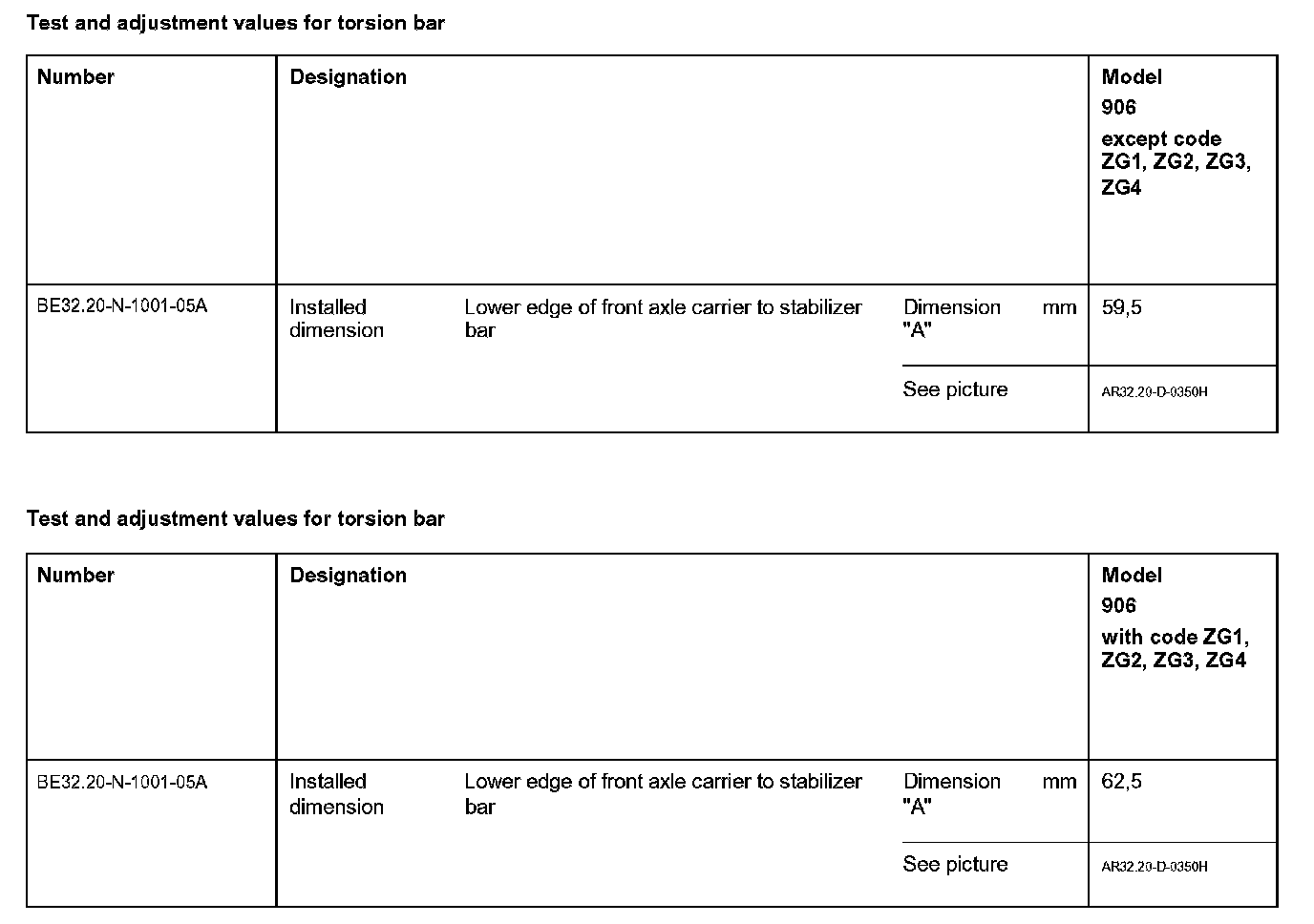

A Installed dimension
