Control Arm Bushing: Service and Repair

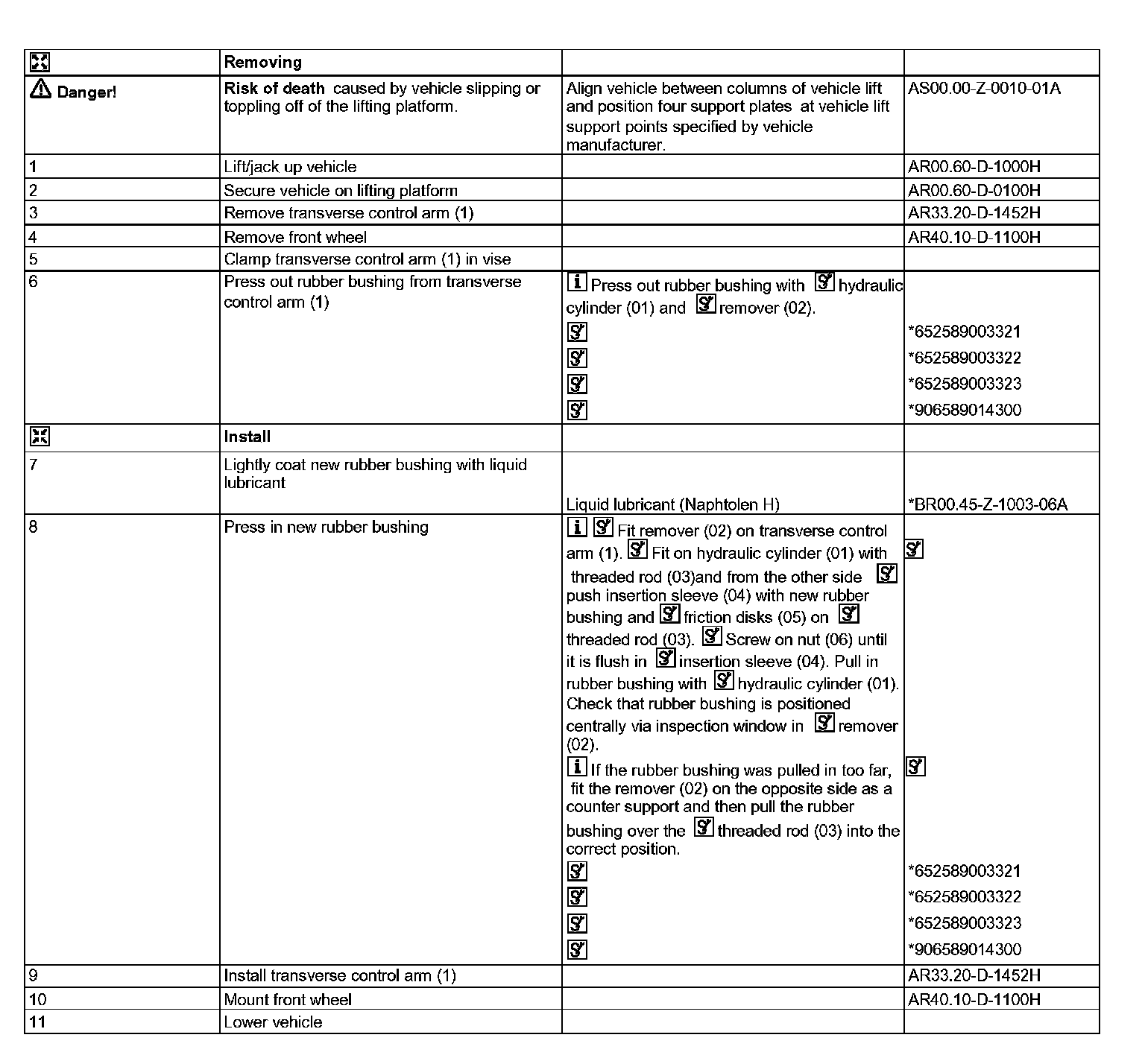

AR33.20-D-0400H Remove/Install Rubber Mounts of Transverse Control Arms









01 Hydraulic cylinder
02 Press-out sleeve
03 Threaded rod
04 Pulling-in sleeve
05 Friction disks
06 Nut

1 Transverse control arms








906 589 01 43 00
Pressing tool





652 589 00 33 21
Hand pump





652 589 00 33 22
Hollow cylinder





652 589 00 33 23
Hydraulic hose (complete)
