Removal and Replacement

AR35.15-D-0203H Remove/Install Bar Link Ball Joint
- REAR AXLE 741.412 /415 in MODEL 906.13 /23 /63 /73
- with CODE (PL9) Air suspension, company VB-Airsuspension
- REAR AXLE 741.413 /414 /416 /420 in MODEL 906.15 /25 /65
- with CODE (PL9) Air suspension, company VB-Airsuspension

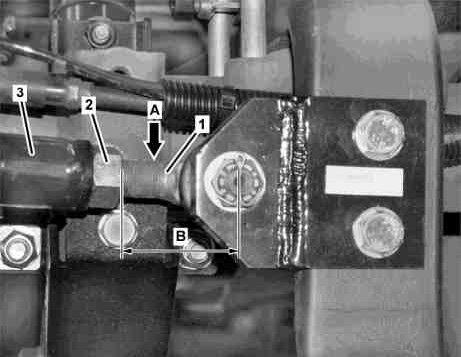

Illustrated on model 906.13

1 Ball joint
2 Nut
3 Bar link
