Steering Wheel: Service and Repair

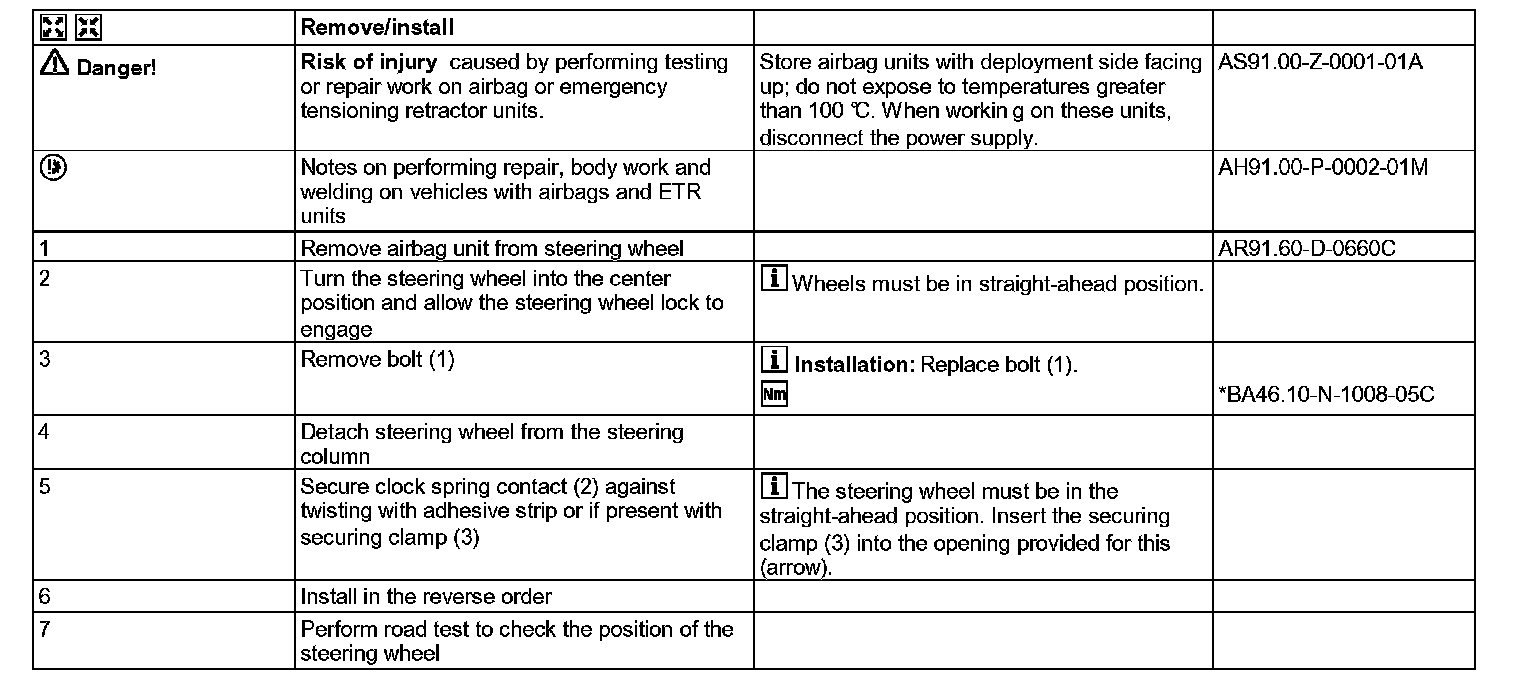

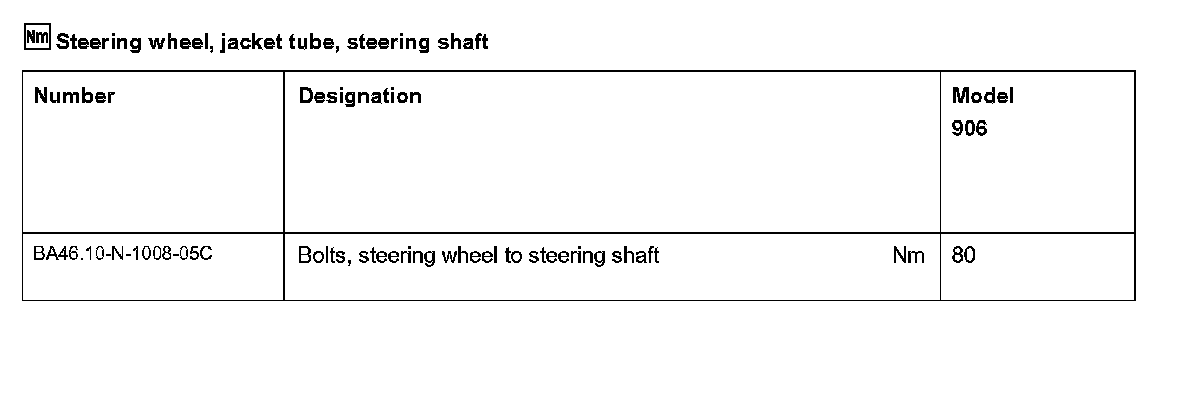

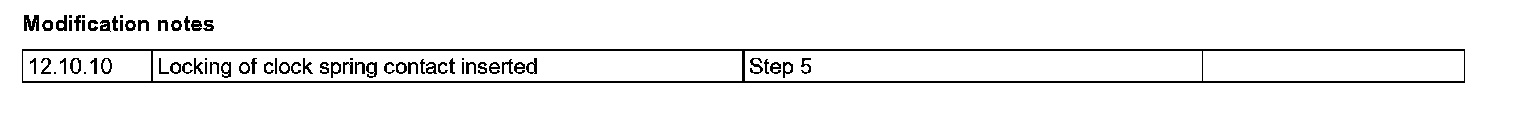

AR46.10-D-0100E Remove/Install Steering Wheel









1 Screw
2 Clock spring contact
3 Securing clamp
