Procedures

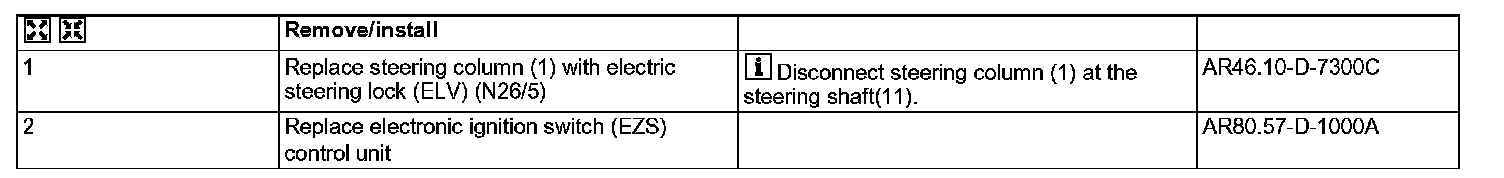

SM46.10-D-0008AK Replace Steering Column, Electric Steering Lock (ELV) and Electronic Ignition Switch (EZS)

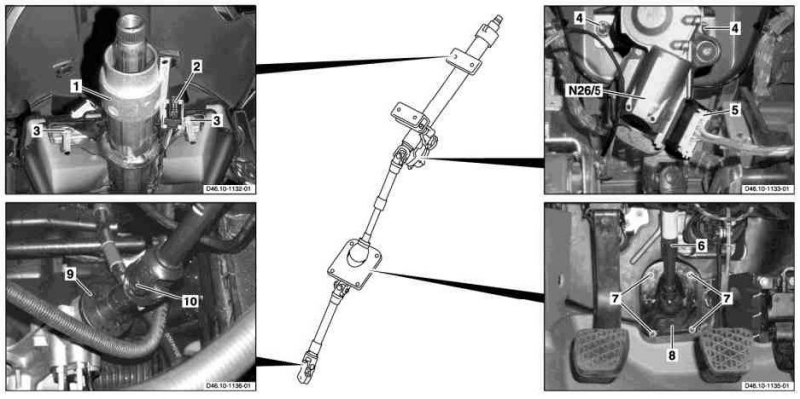

1 Steering column
2 Steering angle sensor connector connection line
3 Nut
4 Nut
5 Plug for ELV [electric steering adjustment]
6 Steering shaft
7 Bolts
8 Firewall lead-through
9 Steering gear
10 Universal joint

N26/5 ELV control unit

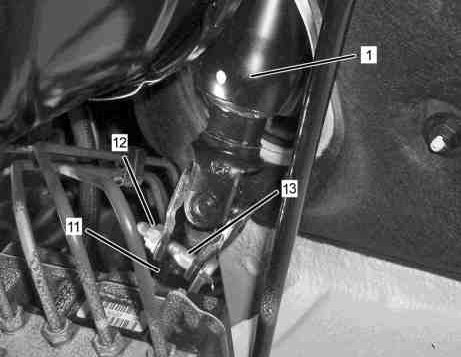

11 Steering shaft
12 Nut
13 Pin
