AR40.20-D-0322H Check and Adjust Camber and Caster at Front Axle




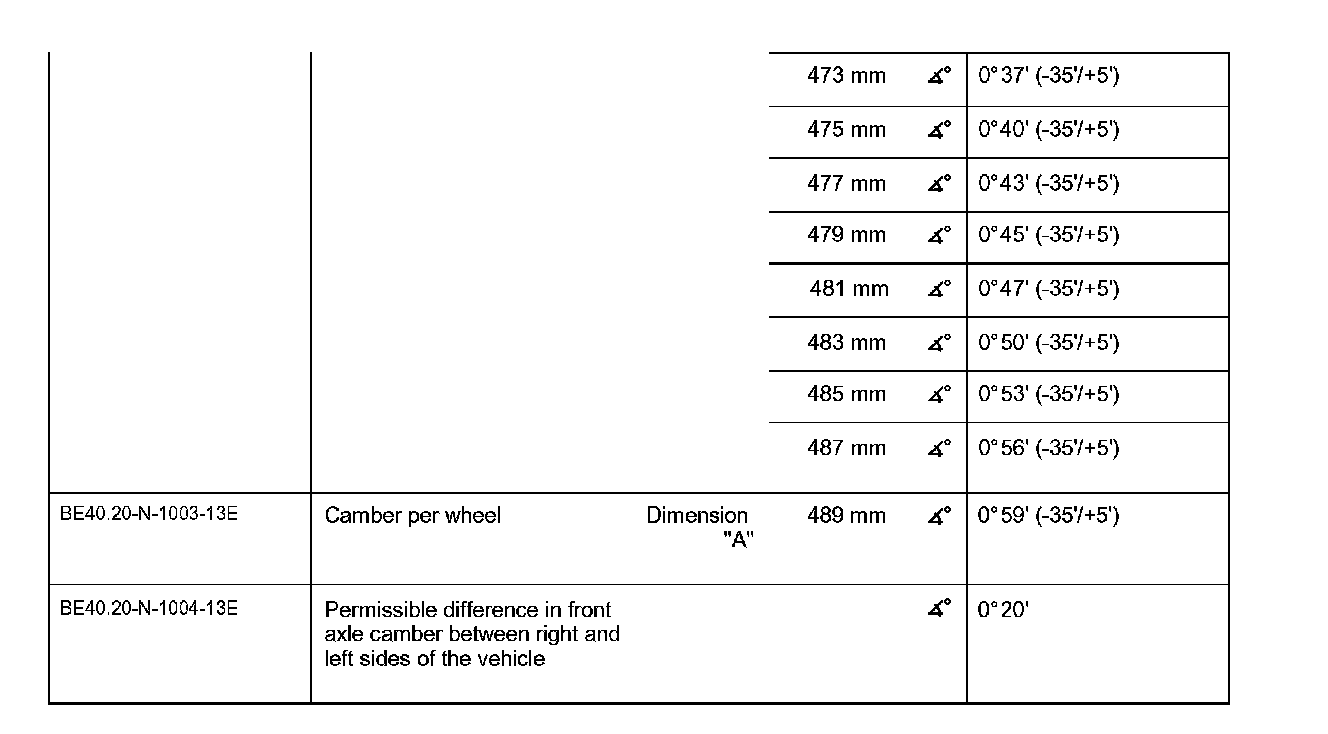

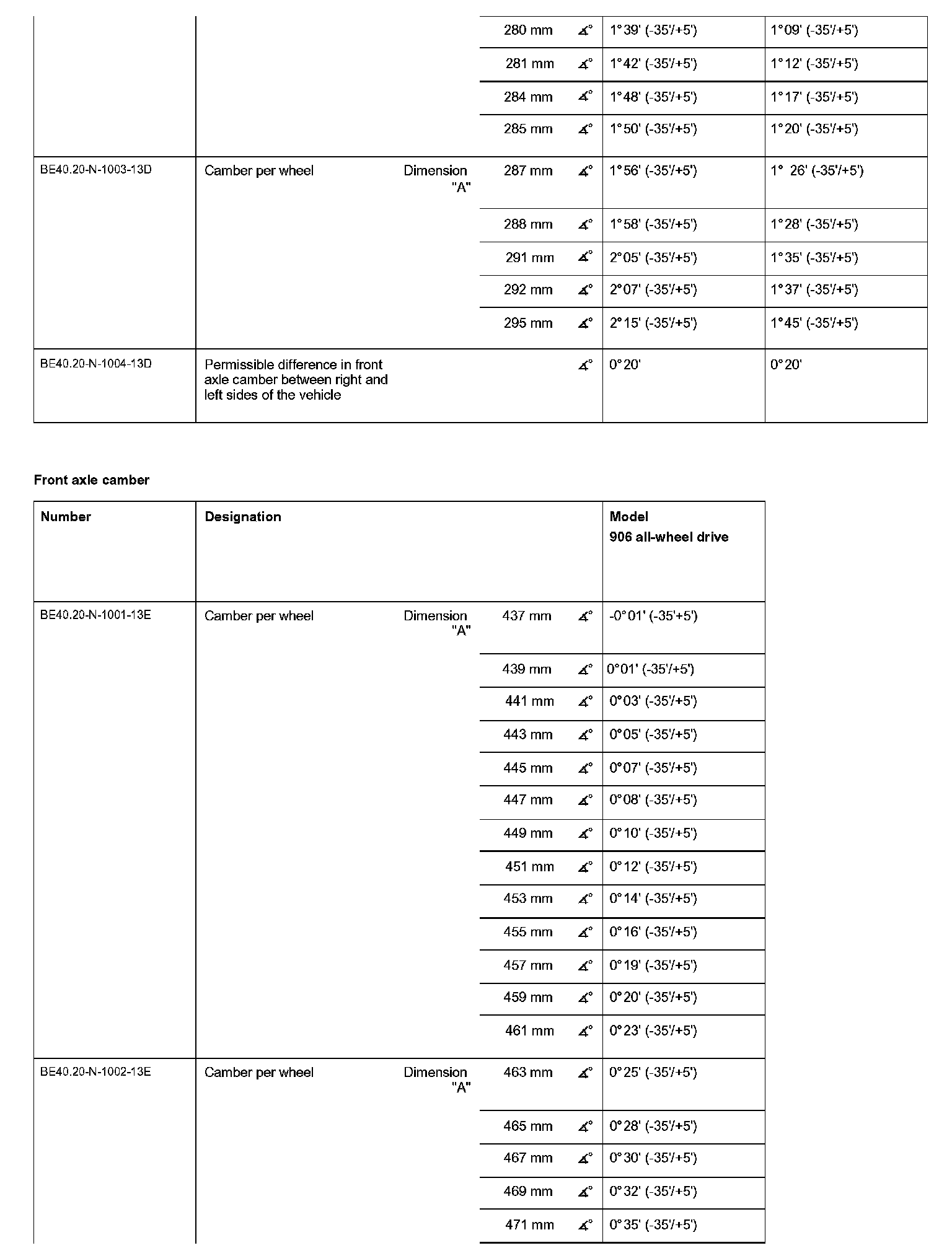

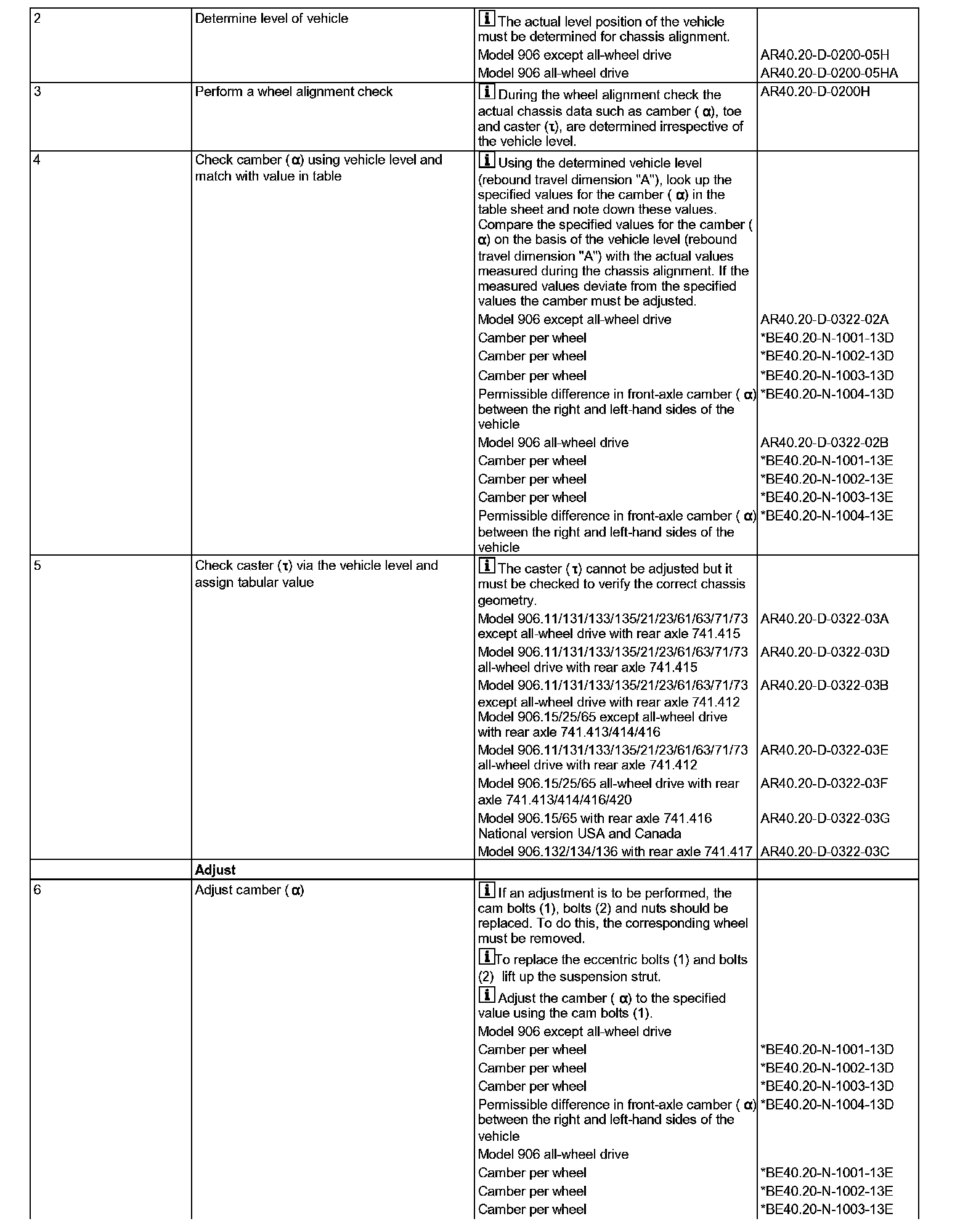

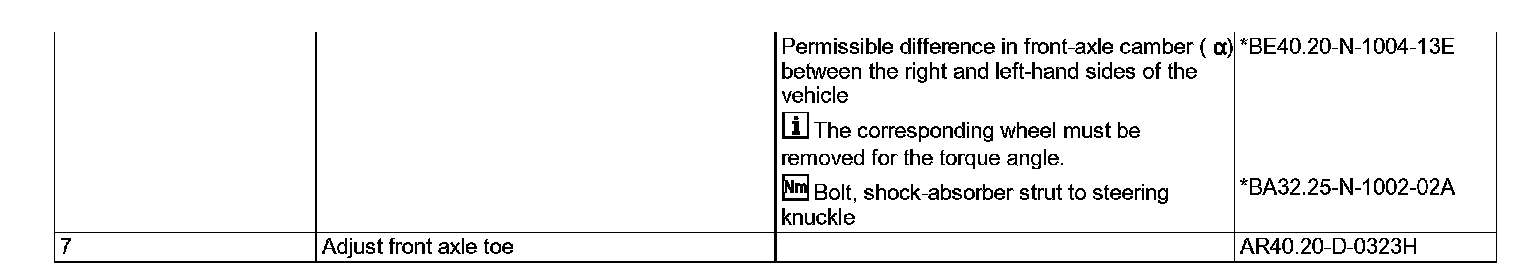

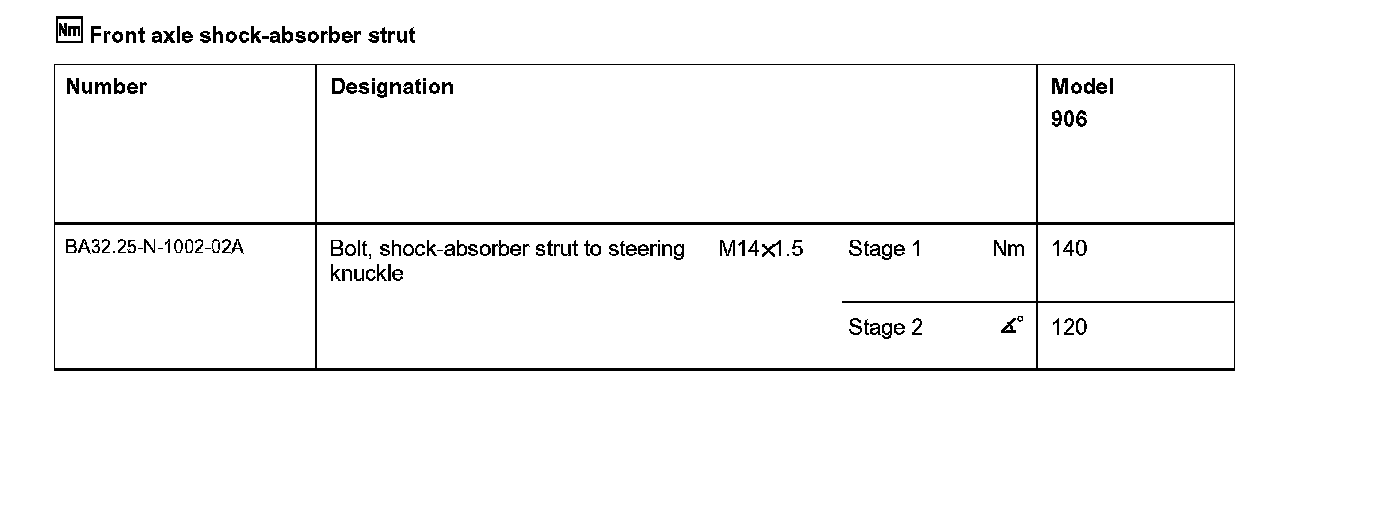

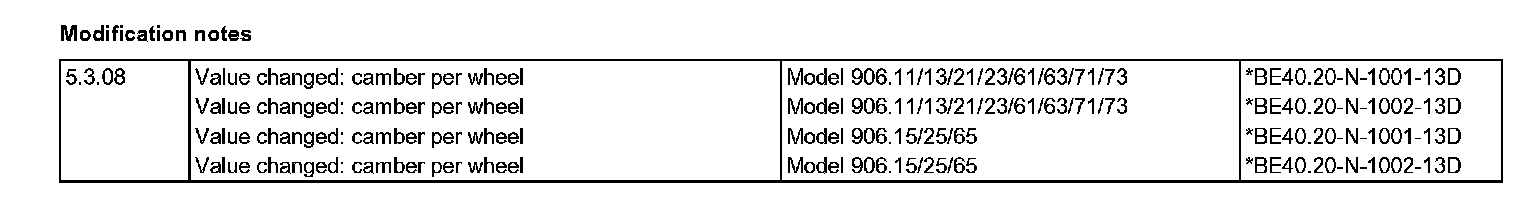

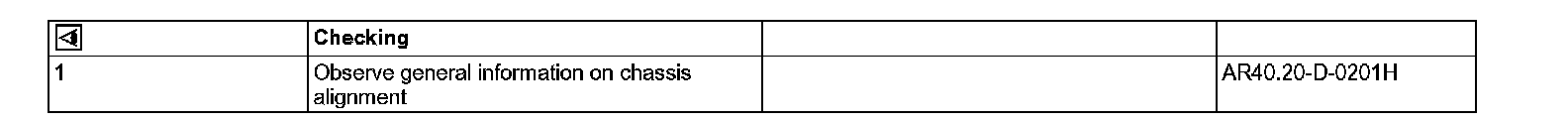

AR40.20-D-0322H Check and Adjust Camber and Caster At Front Axle

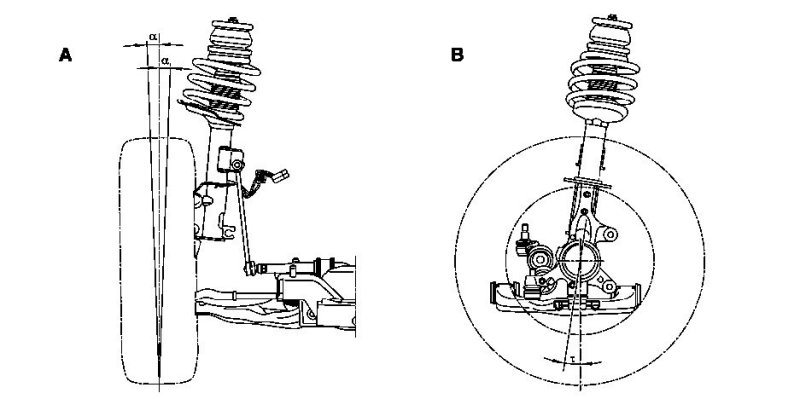

Schematic view of front axle

a Camber
t Caster





1 Cam bolt
2 Screw
